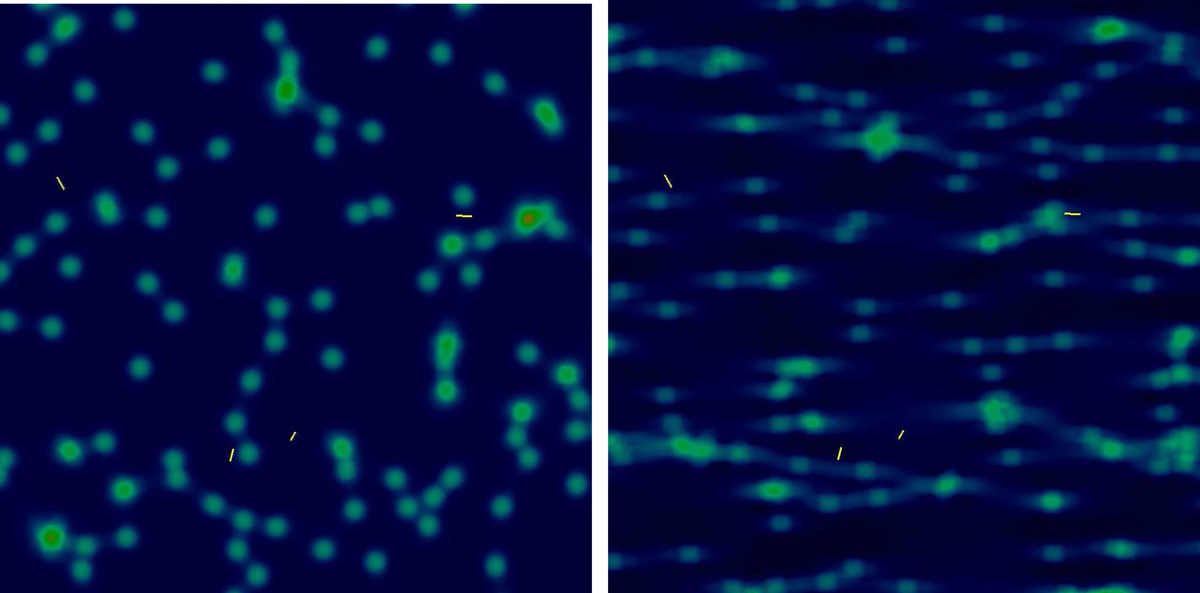

Fig. 8.


Microlensing magnification patterns for a population of 0.2 M bodies with parameter values κ* = 0.04, κc = 0.4, γ = 0 (left hand panel) and κ* = 0.04, κc = 0.4, γ = 0.4 (right hand panel). Each frame consists of 10002 pixels and has a side length of 72 Einstein radii in the lens plane. The tracks are as for Fig. 6. The plots have been convolved with a source size of 0.5RE.
