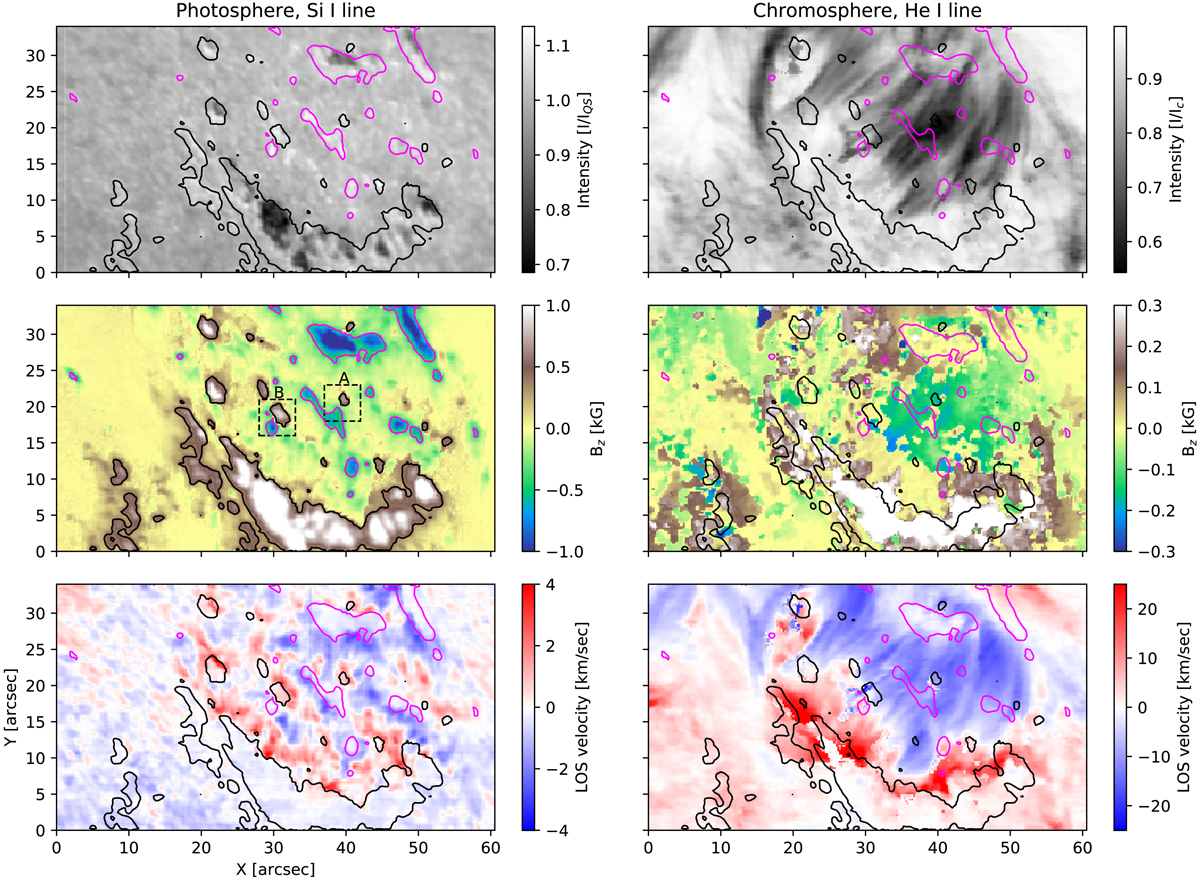

Fig. 7.

Left panel: inferred photospheric parameters using M–E inversion of the Si I line. Right panel: inferred parameters obtained by inverting He triplet lines using the Hazel code. The magenta and black closed contours in each map represent the negative and positive polarity of the magnetic field observed in the photosphere, respectively. Square boxes (A and B) indicate the location of mixed-polarity regions.
