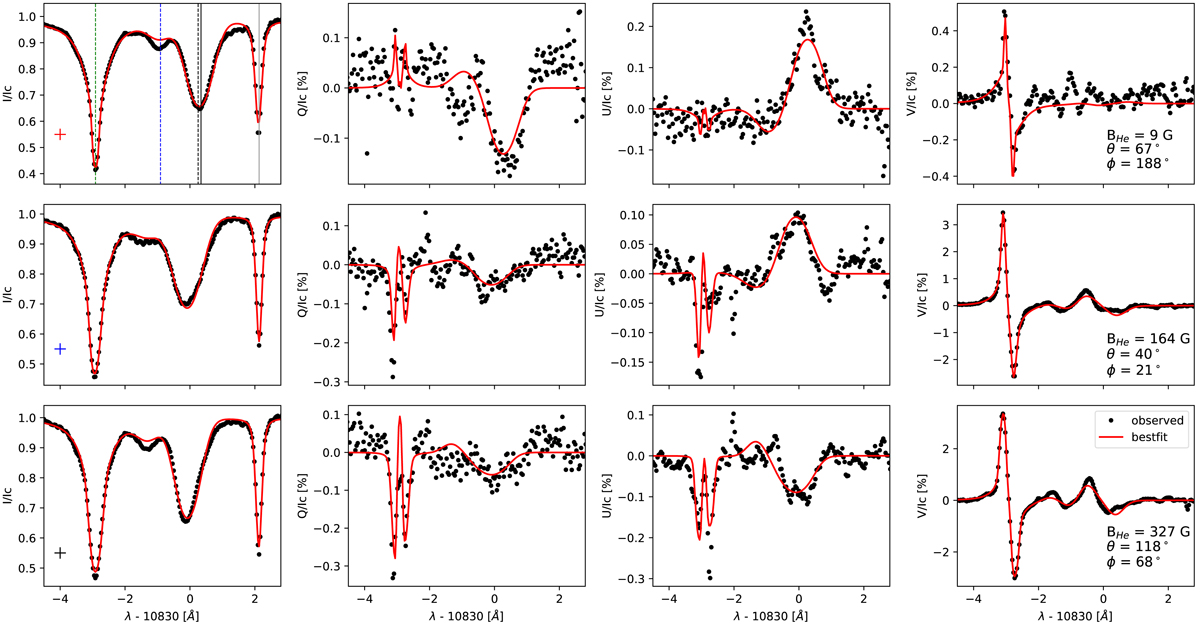

Fig. 4.

Observed and best-fit Stokes profiles (dark dotted and red solid lines respectively). All observed profiles were fitted with a single slab of model atmosphere and the inferred magnetic parameters (using He triplet) are given in the right column. The locations of the observed Stokes profiles in each panel are indicated by plus symbols of different colors in Fig. 3. In the top left panel (Stokes I profile), the dashed green and solid gray line represent the Si I 10827 Å and the telluric line (10832 Å). The rest wavelength of blue (dashed blue) and two blended red components (black dashed and solid) of He I triplet lines are indicated by vertical lines.
