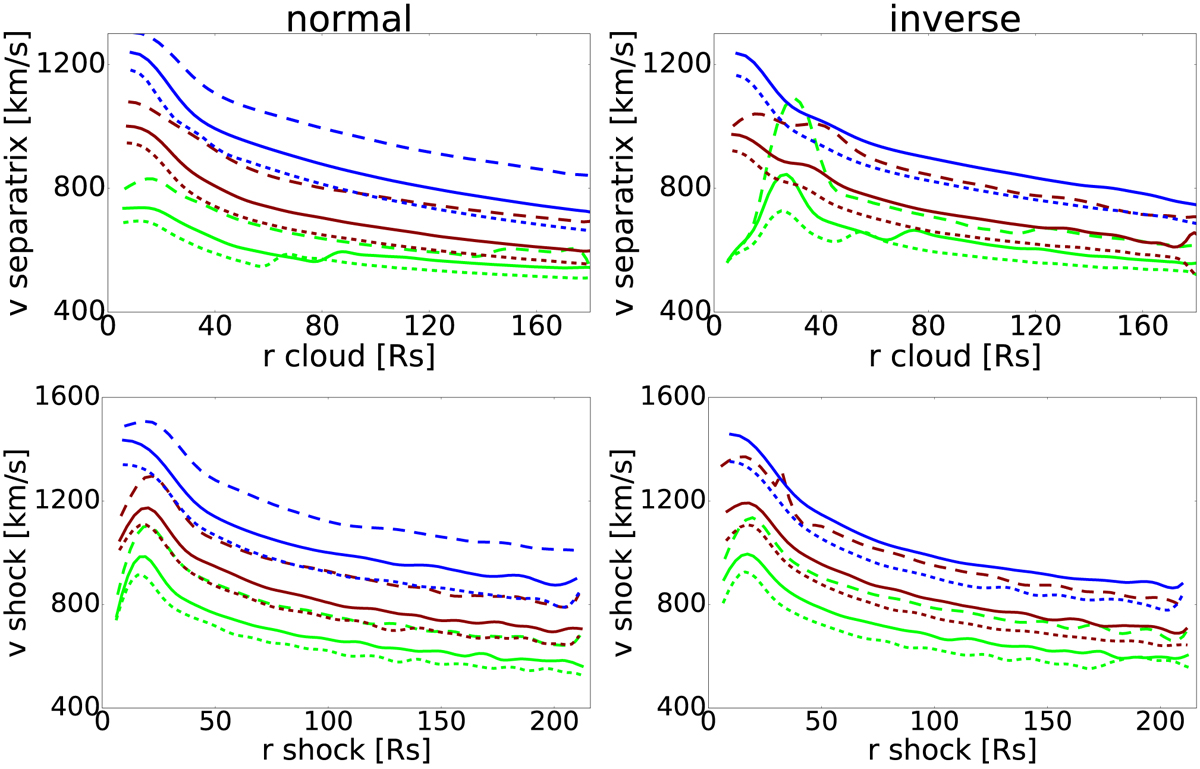

Fig. 6.
Velocity profiles of both the front of the separatrix (upper panels) and the shock (lower panels) in function of their position. Left panels: results of all normal CME simulations while right panels: results of the inverse CME simulations. The colours represent different initial velocities (green: 400 km s−1, red: 800 km s−1, blue: 1200 km s−1), while the line styles represent different background wind densities (dashed: 4 cm−3, solid: 8 cm−3, dotted: 12 cm−3. Both columns have the same scale to facilitate comparisons.
