Fig. 2.

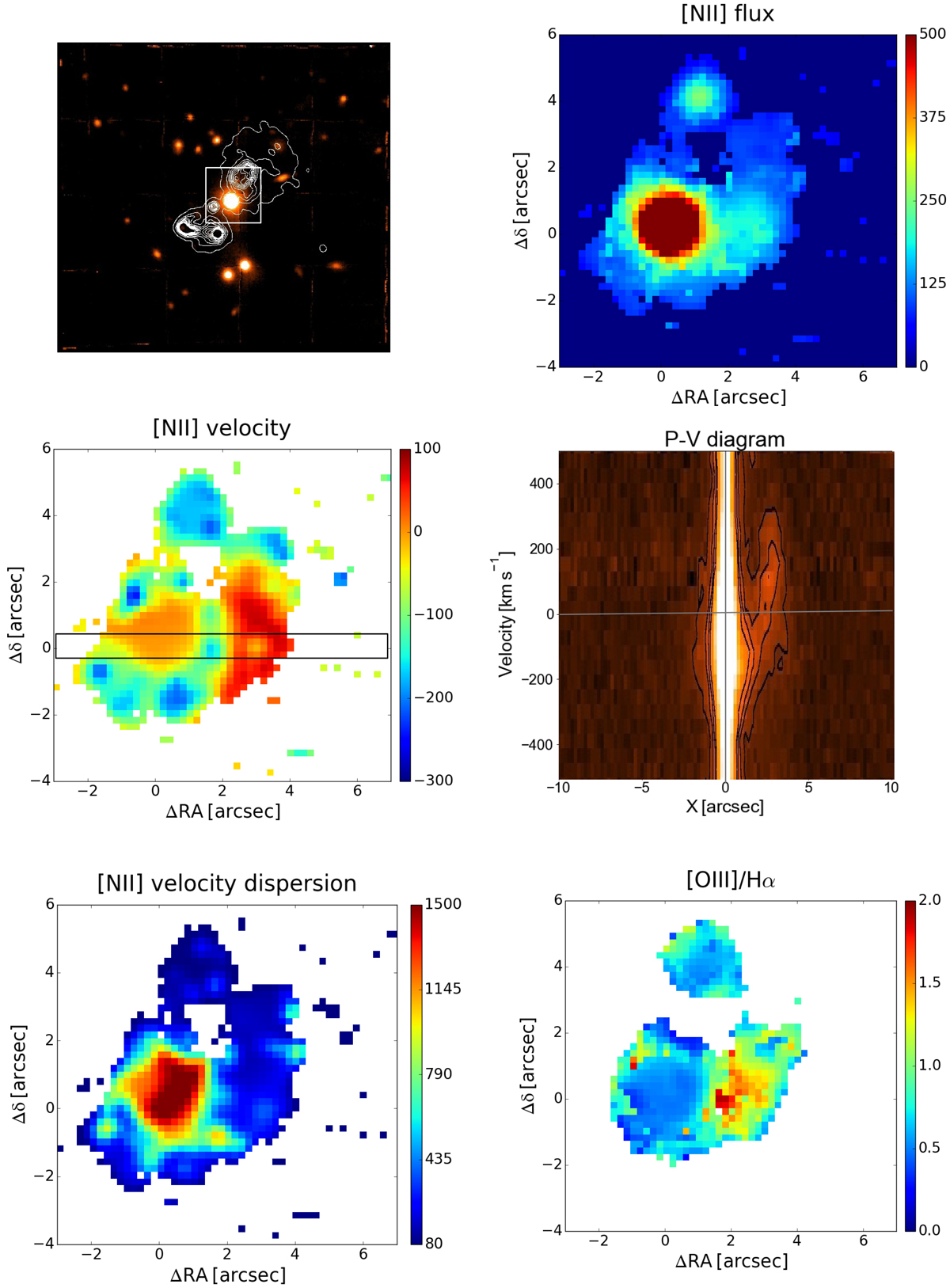

3C 017, FR II/BLO, 1″ = 3.58 kpc. Top left: radio contours (in white) overlaid onto the Muse optical continuum image over the MUSE field of view. Top right: [N II] emission line image extracted from the white square marked in the left panel. Middle left: gas velocity obtained from the [N II] line. Middle right: position-velocity diagram extracted from the synthetic slit shown overlaid onto the velocity field. Bottom: velocity dispersion and [N II] map of the [O III]/Hα line ratio. Surface brightness is in 10−18 erg s−1 cm−2 arcsec−2, velocities are in km s−1 units.
