Fig. 6

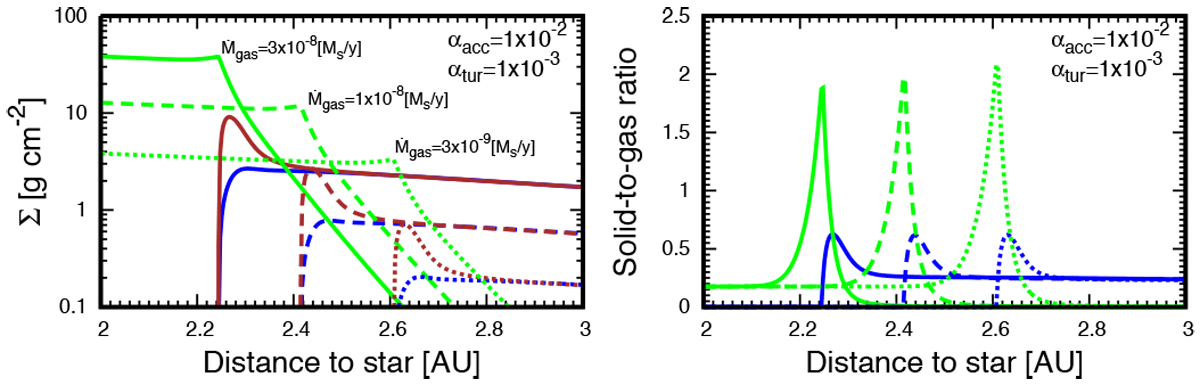

Surface density (left) and midplane solid-to-gas ratio (right) for the case of αacc = 10−2, αtur = 10−3, Fp/g = 0.3 and K = 0. In each panel, solid, dashed and dotted lines represent the cases of different accretion rate of the gas as Ṁgas = 3 × 10−8Msun yr−1, Ṁgas = 1 × 10−8Msun yr−1 and Ṁgas = 3 × 10−9Msun yr−1, respectively. In the left panel, blue, brown and green lines represent those of ice in pebbles, silicate in pebbles and silicate grains, respectively. In the right panel, blue and green lines represent those of pebbles and silicate grains, respectively.
