Fig. 4.

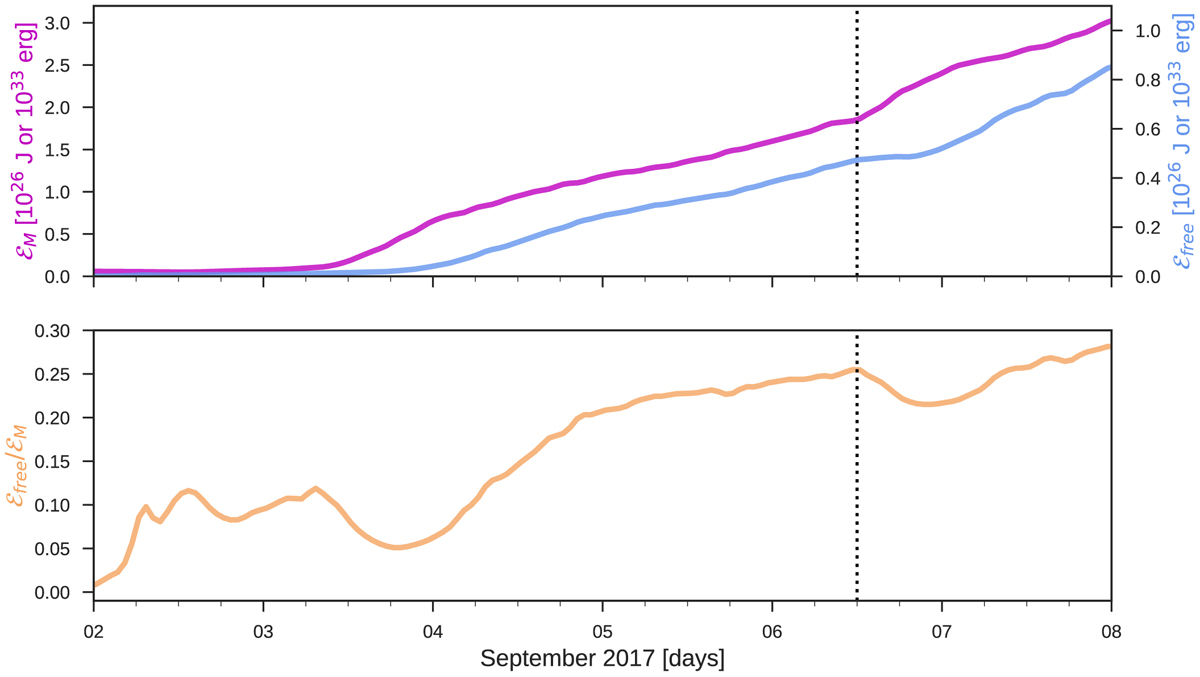

Temporal evolution of magnetic energy. Top panel: total magnetic energy (purple) compared to the free magnetic energy (blue) on different scales. Bottom panel: ratio of the free magnetic energy to the total magnetic energy (orange). The dashed vertical line in each panel indicates the time of the X9.3 flare.
