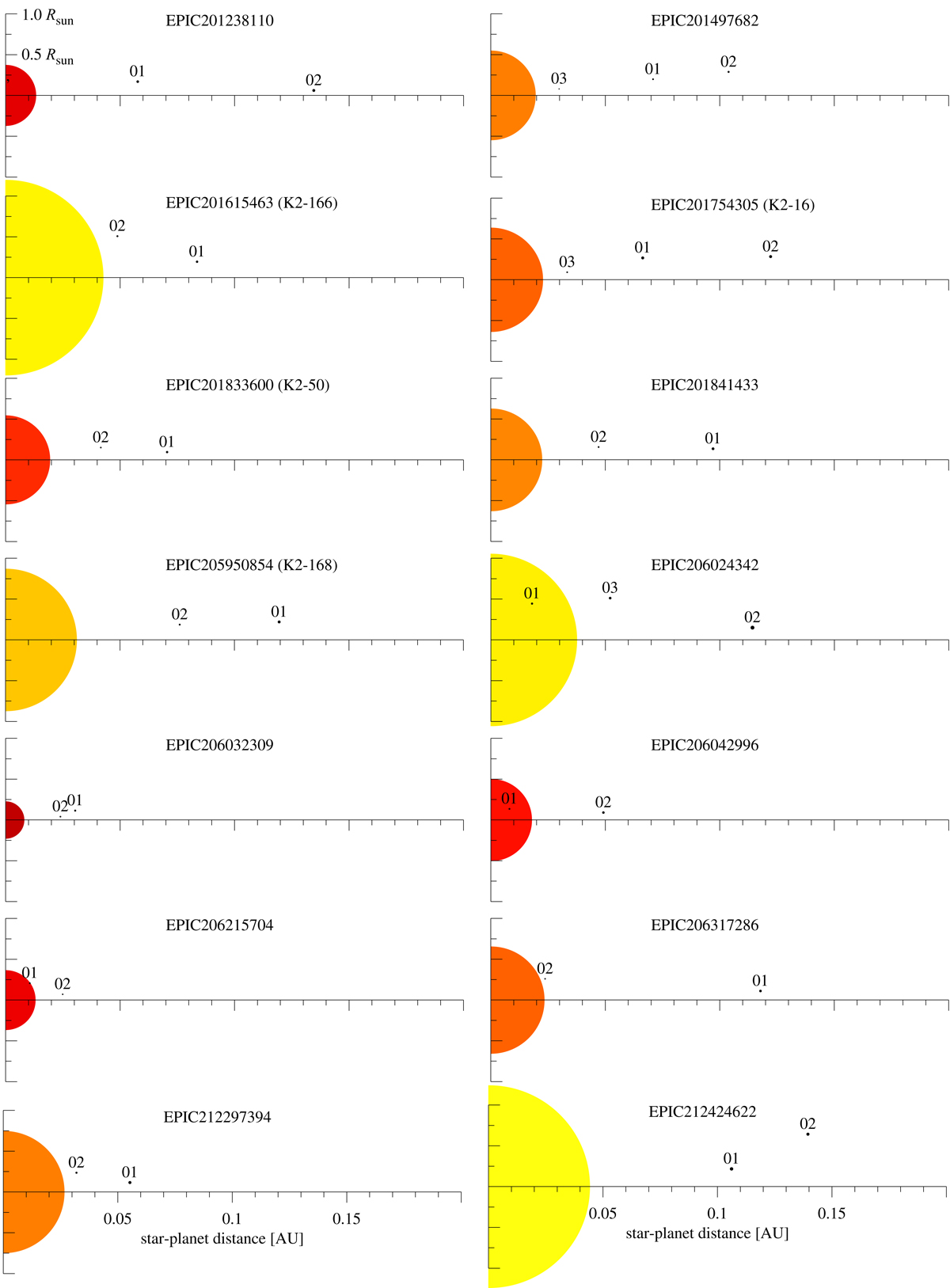

Fig. 5.


Orbital architectures of the 17 systems with new planets. The colors of the stars indicate their effective temperatures, ranging from 3500 K (red) to 6100 K (yellow). All planets known in each system are shown, where the new planets are designated with the highest number (02 or 03) in each system. The positions of the planets are chosen based on the results of our MCMC fitting of the entire K2 light curves, with the x coordinate corresponding to the star-planet distance (in AU) and the y coordinate relating to the transit impact parameter. The ordinate runs from zero to the radius of the Sun. All stellar and planetary radii are to scale. Star-planet distances are also to scale, but radii are not to scale with distances.
