Fig. 15

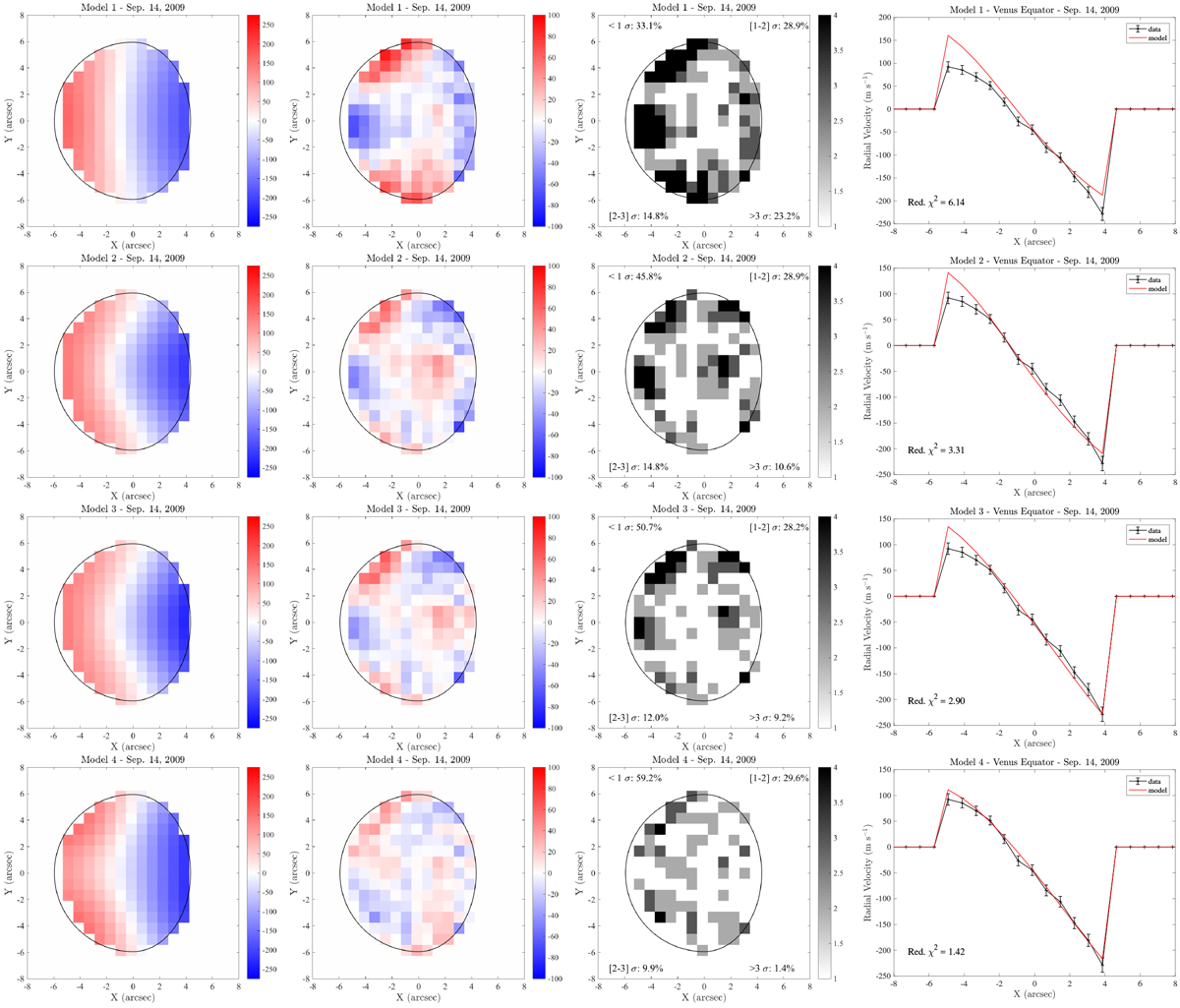

Model vs. data for models 1 to 4 for data taken on September 14, 2009. Left panels: best-fit model. Second column of panels: observation minus model, i.e., residual maps. Third column of panels: residual maps in terms of measurement errors. White color indicates agreement within 1σ, light gray in between 1 and 2σ, dark gray in between 2 and 3σ, and black above 3σ. In the four corners of each error map are indicated the fractions of points in each group ([0 − 1] σ, [1 − 2] σ, [2 − 3] σ, or > 3 σ). Right panels: best fit models overplotted with data along the equator. Error bars are 1σ errors.
