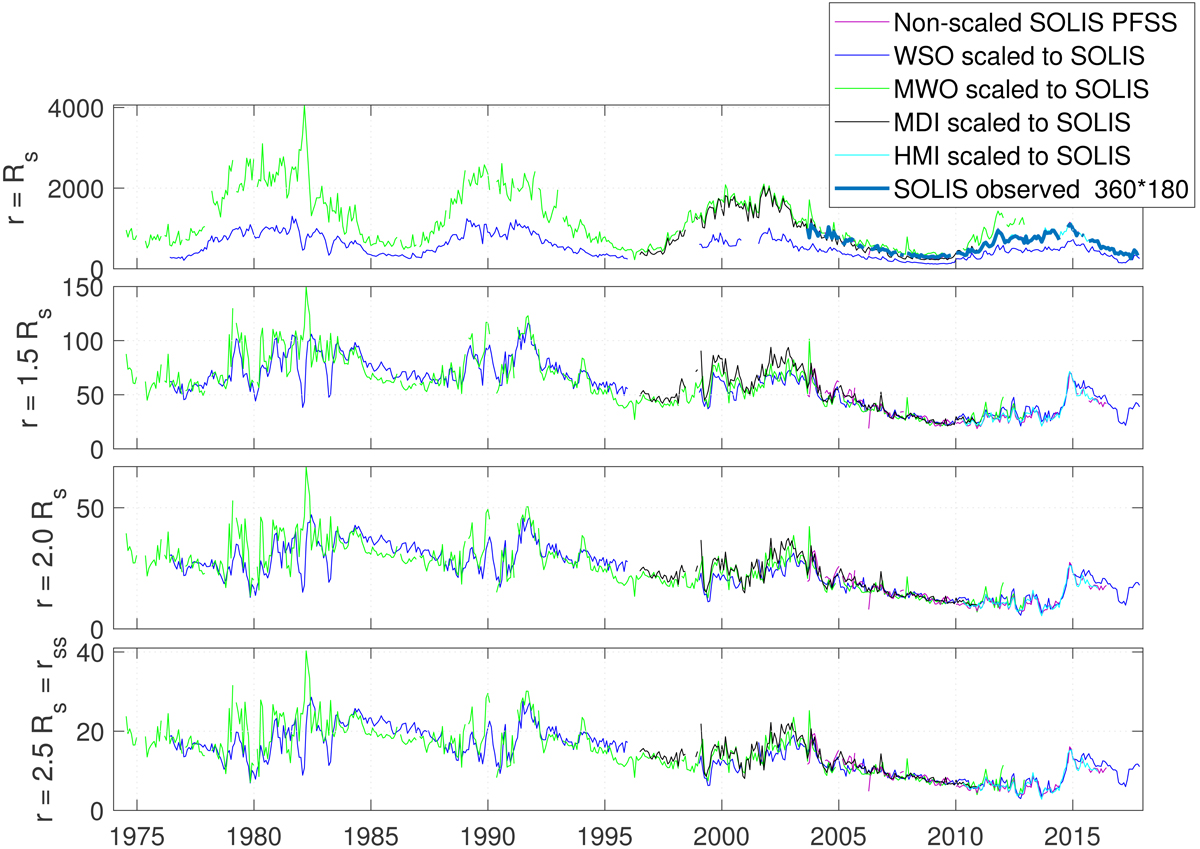

Fig. 10.


Scaled magnetic flux densities at four altitudes from photosphere to the source surface(1RS, 1.5RS, 2.0RS and 2.5RS) for four data sets scaled to SOLIS (nmax = 90 for others, 9 for WSO). Upper panel: dark-green curve shows the observed (not PFSS modeled) unsigned magnetic flux density of SOLIS/VSM (360*180 resolution). Second and third panels: ⟨|Br(r)|⟩ at r = 1.5Rs and r = 2.0Rs and fourth panel: at the source surface of r = 2.5Rs.
