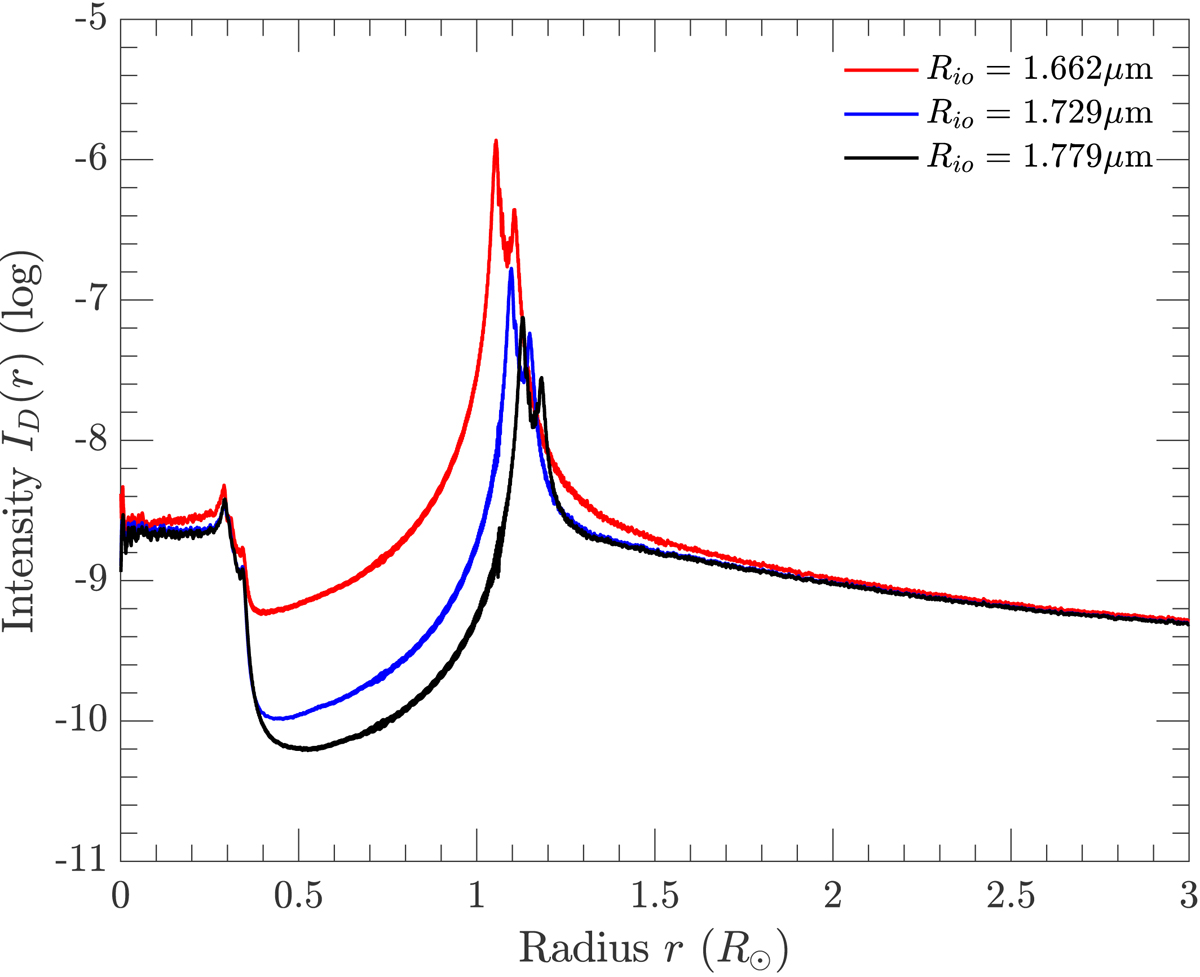

Fig. 9.


Radial intensity ID(r) in plane D, in logarithmic scale, for different sizes of the internal occulter. The radius r is given in units of R. The red line shows an internal occulter of 1.662 mm, the blue line an internal occulter of 1.729, and the black line an internal occulter of 1.779 mm.
