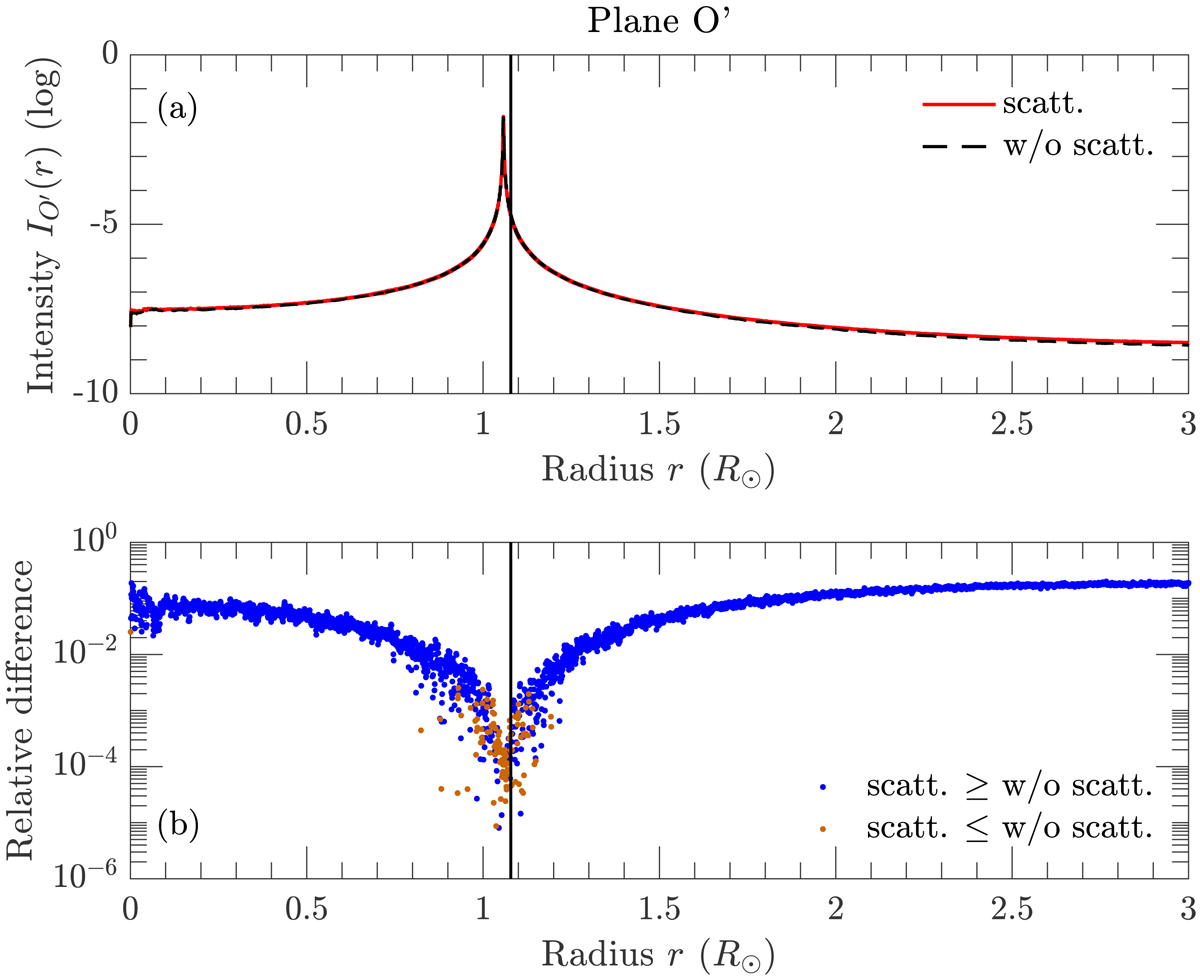

Fig. 6.


Panel a: radial intensity IO(r) in plane O′, in logarithmic scale. The radius r is given in units of R. In red we show the case with scattering in plane A. In black, the ideal case without scattering. The vertical line represents the internal occulter outer radius. Panel b: relative difference, in absolute value. Blue dots indicate where the intensity IO(r) is higher in the case with scattering, and yellow dots indicate the contrary.
