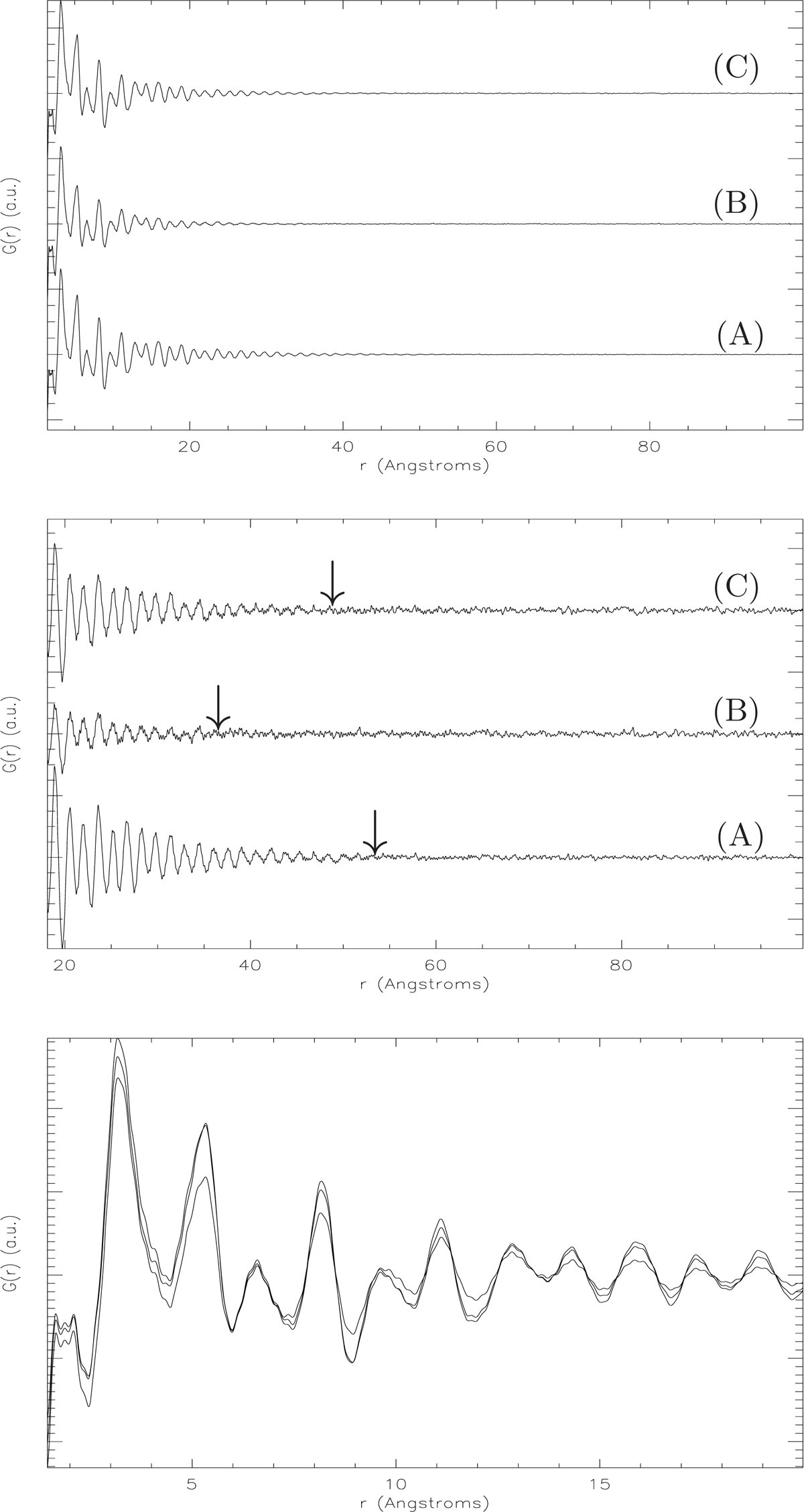

Fig. 9.

Top: measured pair distribution functions out to 100 Å for MgSiO3 dried (A) in air, (B) in vacuum, (C) in microwave oven. Middle: pair distribution functions shown from 20 Å. Arrows indicate real-space length where the pair distribution amplitude goes to zero, marking size limit of coherent scattering domain for each silicate. Bottom: pair distribution functions for each silicate in the 1–20 Å range shown superimposed to show closely similar atomic structures.
