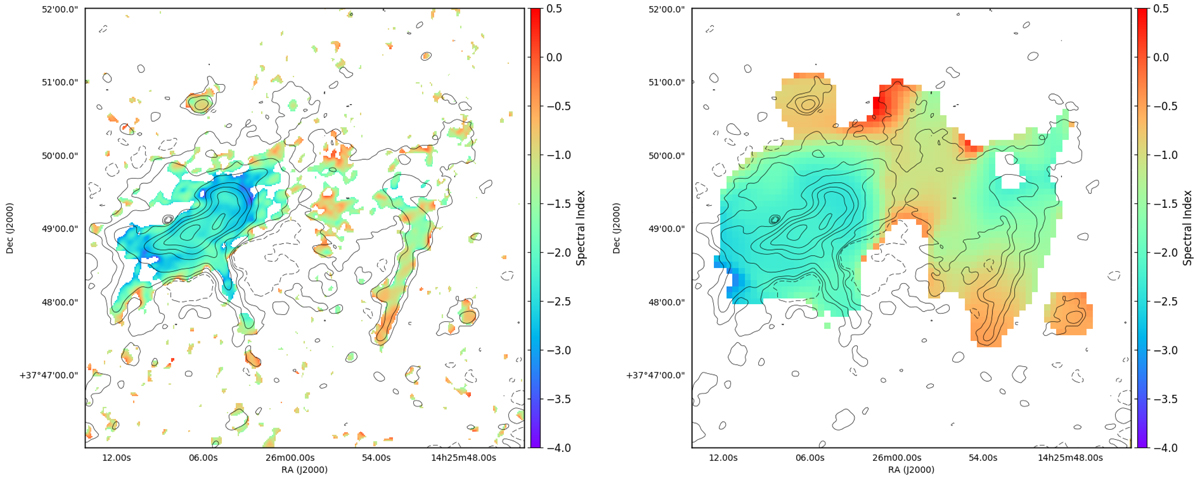

Fig. 6.


Spectral properties of emission from Abell 1914 at 150 MHz to 610 MHz high-resolution (6″ × 6″) (left panel) and 150 MHz–610 MHz–1.4 GHz low-resolution 30″ × 30″ (right panel). In both figures, emission lower than 3σ has been blanked, where σLOFAR150, 6 arcsec = 175 μJy beam−1, σGMRT610, 6 arcsec = 120 μJy beam−1, σLOFAR150, 30 arcsec = 1500 μJy beam−1, σGMRT610, 30 arcsec = 230 μJy beam−1, and σVLA1.4, 30 arcsec = 51 μJy beam−1
