Fig. 2

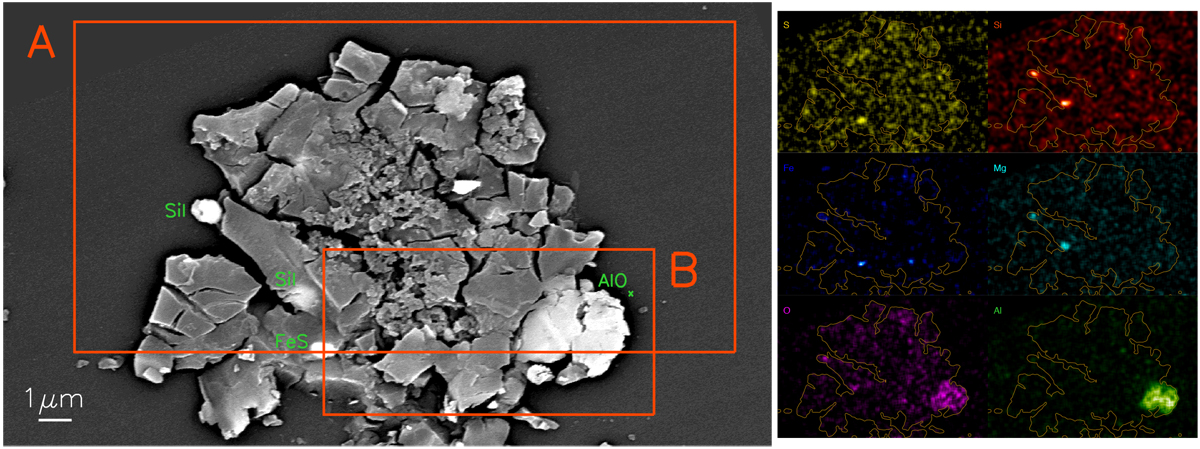

Left: back-scattered electron (BSE) image of UCAMM DC06-07-18-b displaying the two zones imaged with AFMIR (scales: A, 20 × 10 μm2; B, 10 × 5 μm2).The largest minerals identified are labelled (Sil: silicates; FeS: iron sulphide; AlOX: aluminium rxide). Right: sulphur, silicon, iron, magnesium, oxygen and aluminium X-ray maps.
