Fig. 6.

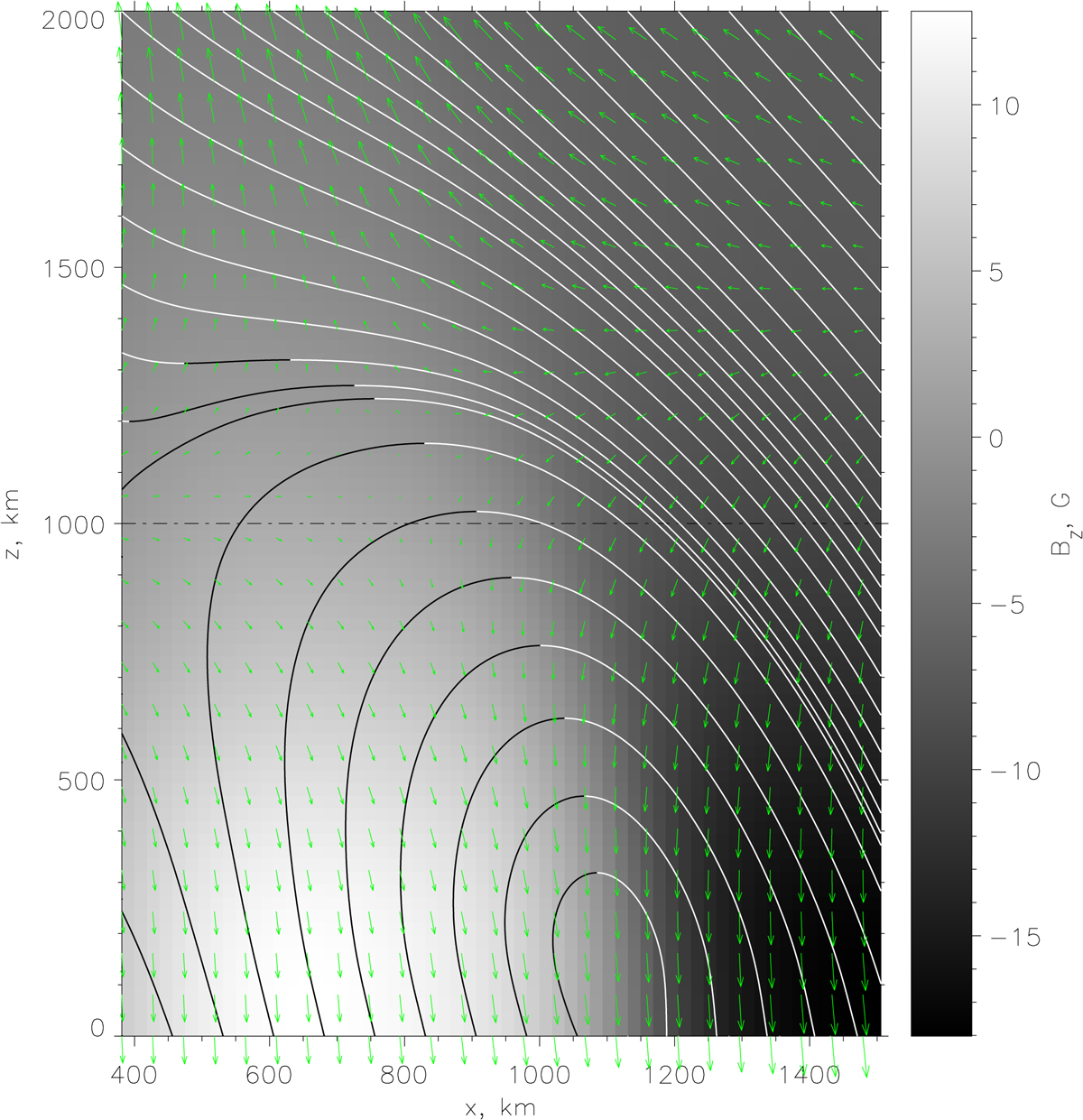

Magnetic field geometry and velocity structure in the reconnection region. The background greyscale image shows the vertical cut (x and z are horizontal and vertical directions respectively) of the vertical component of the magnetic field in the domain. Height z = 0 corresponds to the photospheric level. Solid curves show the magnetic field lines (colours correspond to the magnetic field direction). The horisontal velocity component in the plot corresponds to the velocity, perpendicular to the current sheet. The thin black dash-dotted line shows the height, where the parameters for Fig. 5 were measured.
