Fig. 4.


Open with DEXTER Download original image

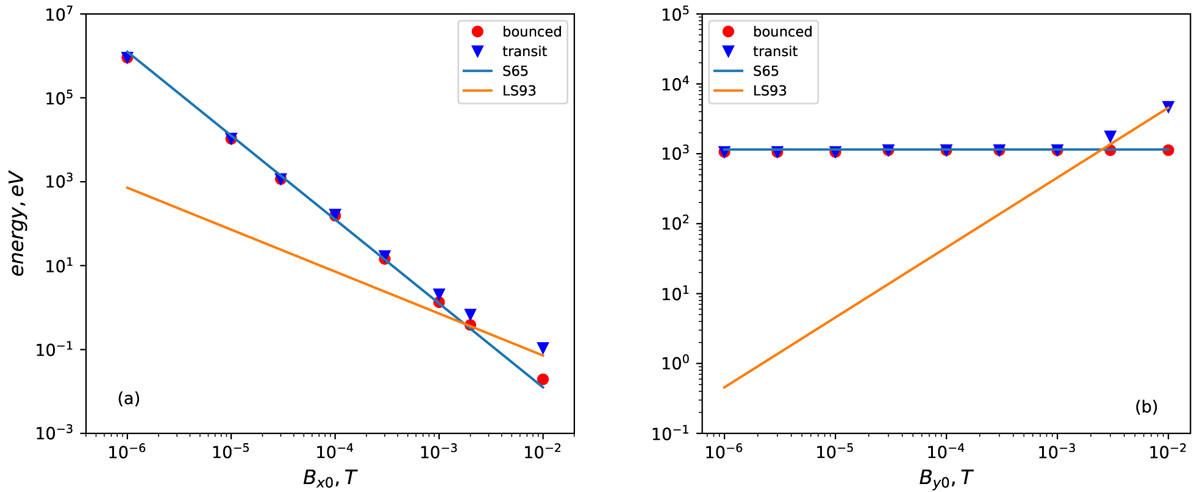

Panel a: energies of ejected protons vs. different Bx for fixed By0 ≡ 10−4T. Panel b: energies of ejected protons vs. different By with Bx0 ≡ 10−3 T. The energy gains from Eqs. (6) and (7) are plotted in blue and orange solid lines. The other parameters are Bz0 = 10 −3T, Ey = 250 V m−1, d = 1 m.
