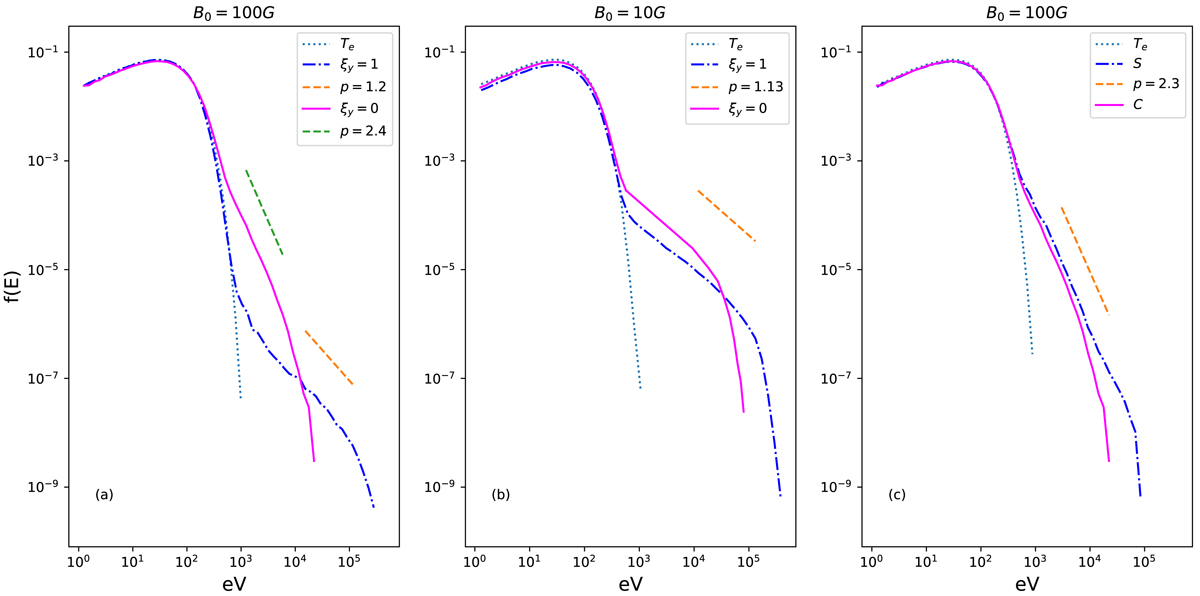

Fig. 15.


Energy spectra of electrons accelerated during t = 8 × 10−5 s in the coalescent islands with magnetic field magnitudes: panel a: B0 = 100 G, and panel b: B0 = 10 G: Both ξy = 0 (the blue dash-dotted line) and ξy = 1 (red lines) cases are compared in the same plot. Panel c: energy spectrum of electrons in squashed (“S”) islands (blue dash-dotted line) with ξy = 0. For comparison, the spectrum of the ξy = 0 case in panel a from coalescent islands (“C”) is also plotted as a background. The green dotted lines indicate the initial thermal distribution with T0 = 100 eV. The other parameters are as follows: Ey0 = 100 V m−1, ϵ = 0.3, k = 0.03125, d = 2 m. We note that the dashed lines show only the referral power-law indexes in different cases and do not represent the whole fitting range of energies gained (up to three orders of magnitude on the plot).
