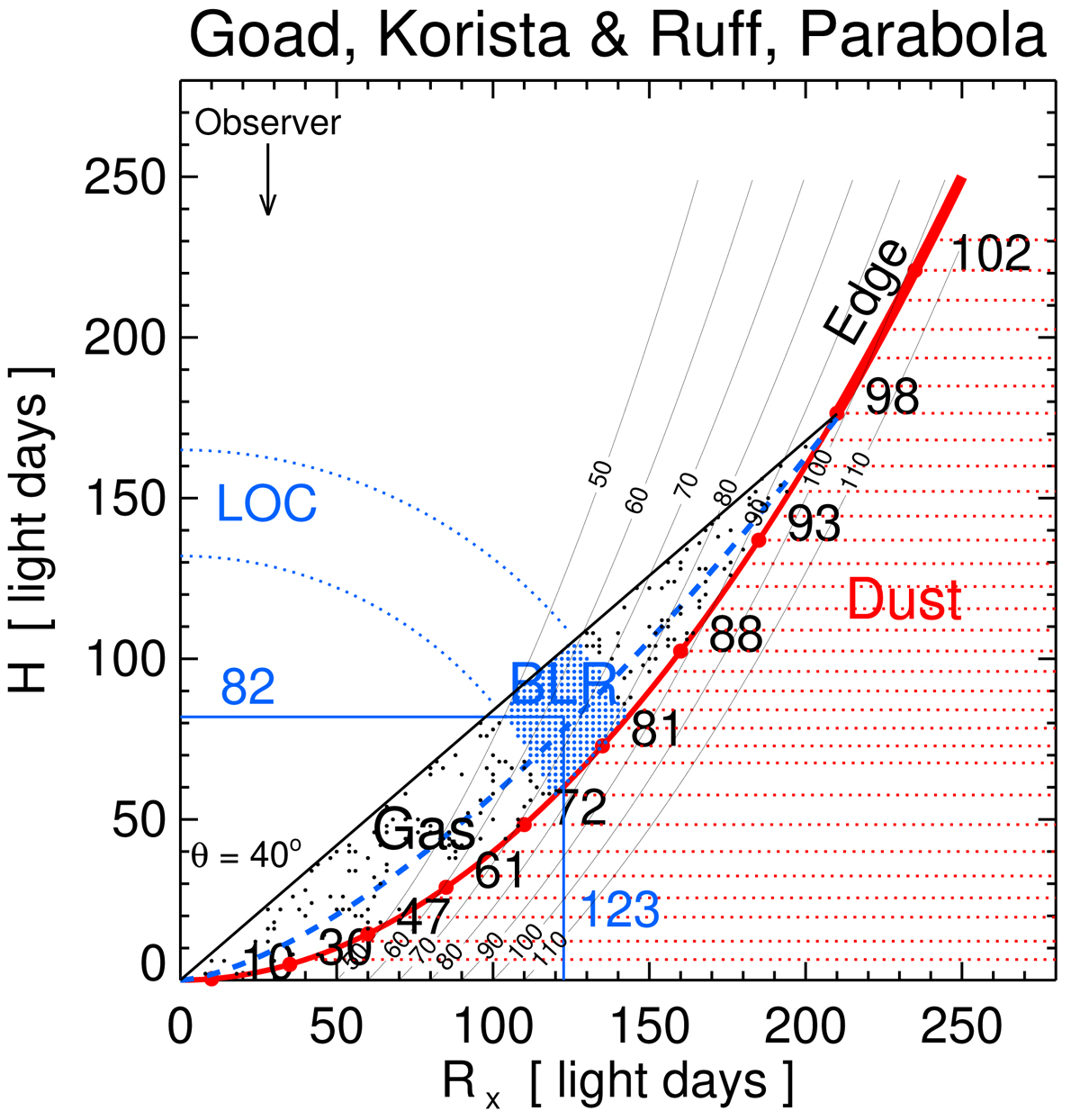

Fig. 16.


Bowl-shaped torus model with parabolic dust rim, as proposed by Goad et al. (2012). The lines, colors, and labels are similar as for Fig. 13. The very thick red line labeled “Edge” indicates the dust rim above θ = 40°. The thick blue long-dashed line indicates a potential BLR gas distribution close to the bowl rim; Goad et al. also assumed a LOC controlled BLR gas distribution in their calculation of the BLR transfer function.
