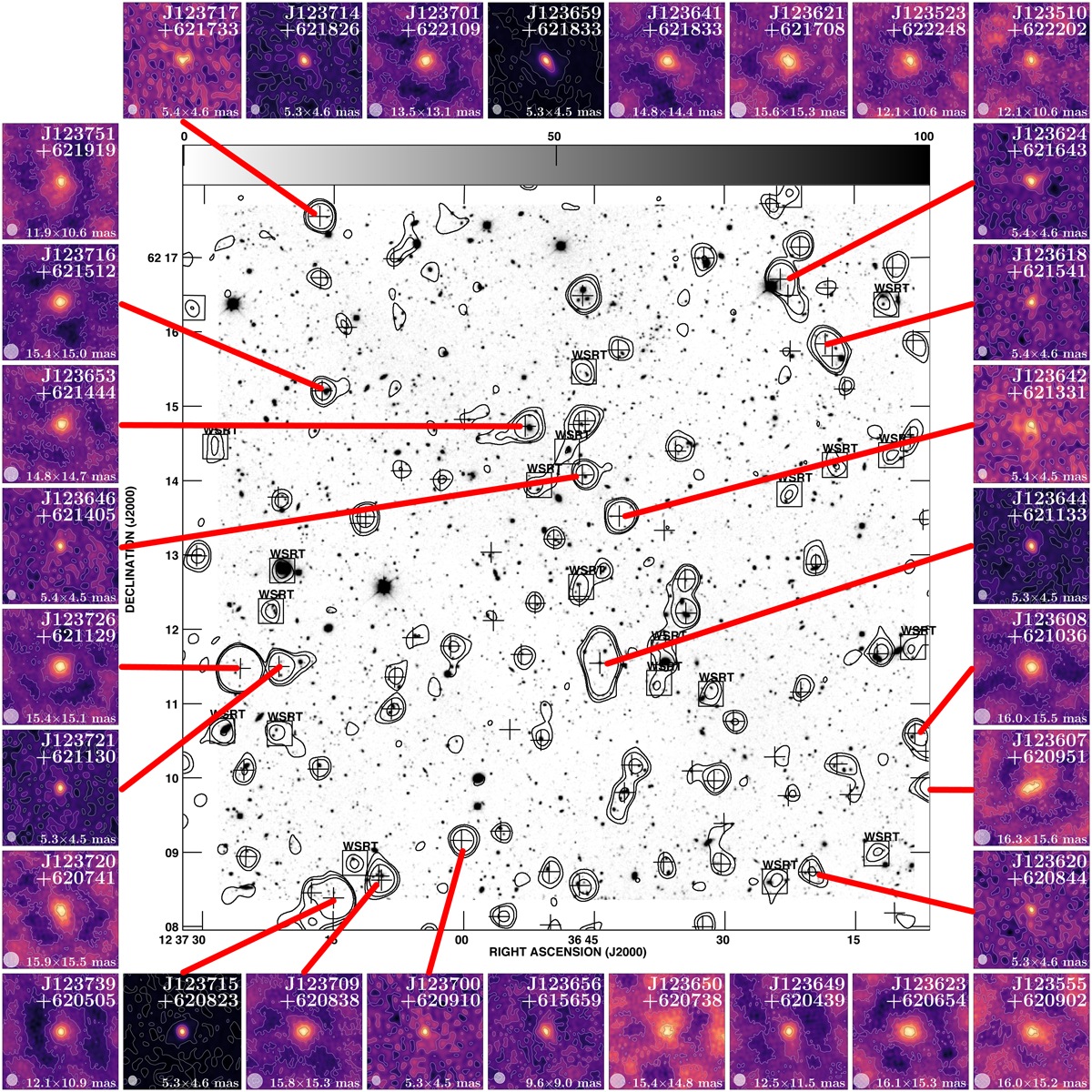

Fig. 3.


Composite image of 1.4 GHz WSRT radio-KPNO optical overlay of the GOODS-N field, centred on the HDF-N (Garrett et al. 2000), surrounded by postage stamp images of the 1.6 GHz 31 VLBI detected sources presented in this paper. Those VLBI sources without adjoining red lines are located outside the WSRT central figure. The VLBI contours are ±1σ noise and then linearly spaced between 1σ noise and the peak pixel brightness. This image is an update on Fig. 1 from Chi et al. (2013).
