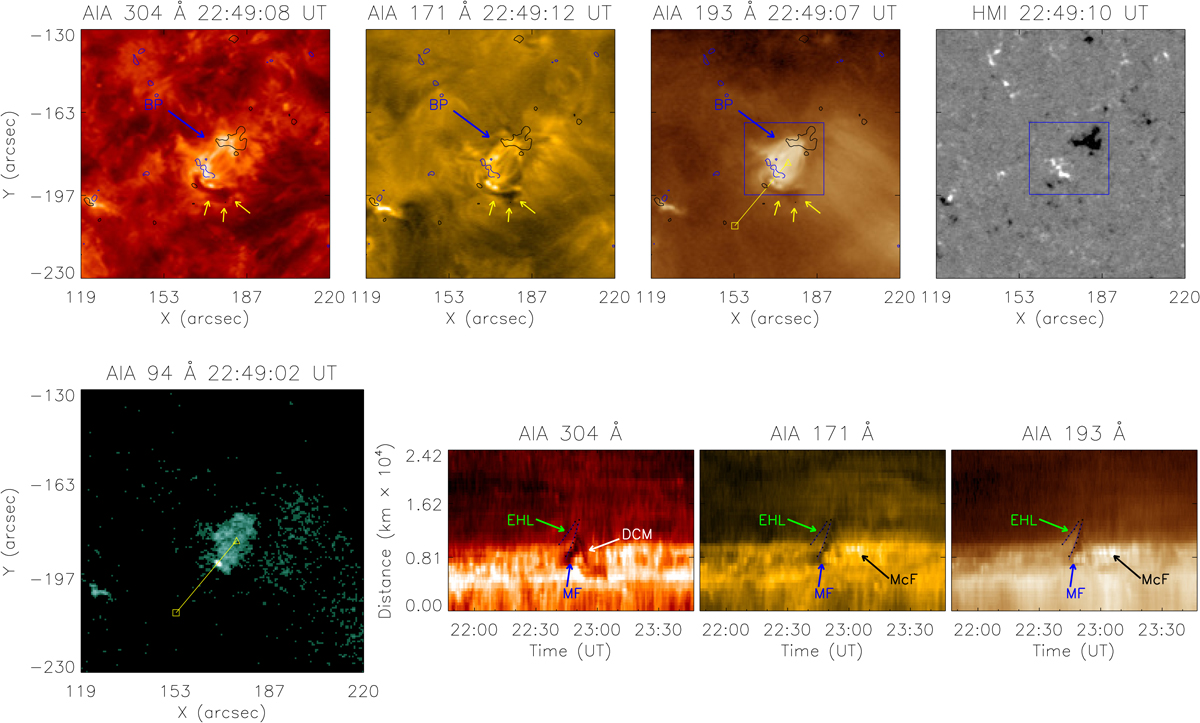

Fig. 1.


BP1 ER1: Top row, from left to right: AIA 304 Å, 171 Å and 193 Å images of first eruption BP1 and their corresponding HMI longitudinal magnetogram scaled from −50 to 50 G. The yellow arrows point at the erupting MF. The blue and black contours outline the positive and negative fluxes at ±50 G. Bottom row, from left to right: AIA 94 Å image of BP1 during the first eruption showing the micro-flare. The solid line indicates the slice which has been extracted to produce the time-slice panels in the AIA 304 Å, 171 Å and 193 Å channels. The bottom of the slice is marked with a triangle and the top with a square. The solid lines in the time-slice panels are a linear fit of visually selected points that outline the bright or dark front of the eruptive features. The following abbreviations are marked on the panels: BP – bright point, EHL – erupting hot loops, MF – mini-filament, McF – micro-flare, and DCM – draining cool material. An animation associated to the top row panels is available online.
