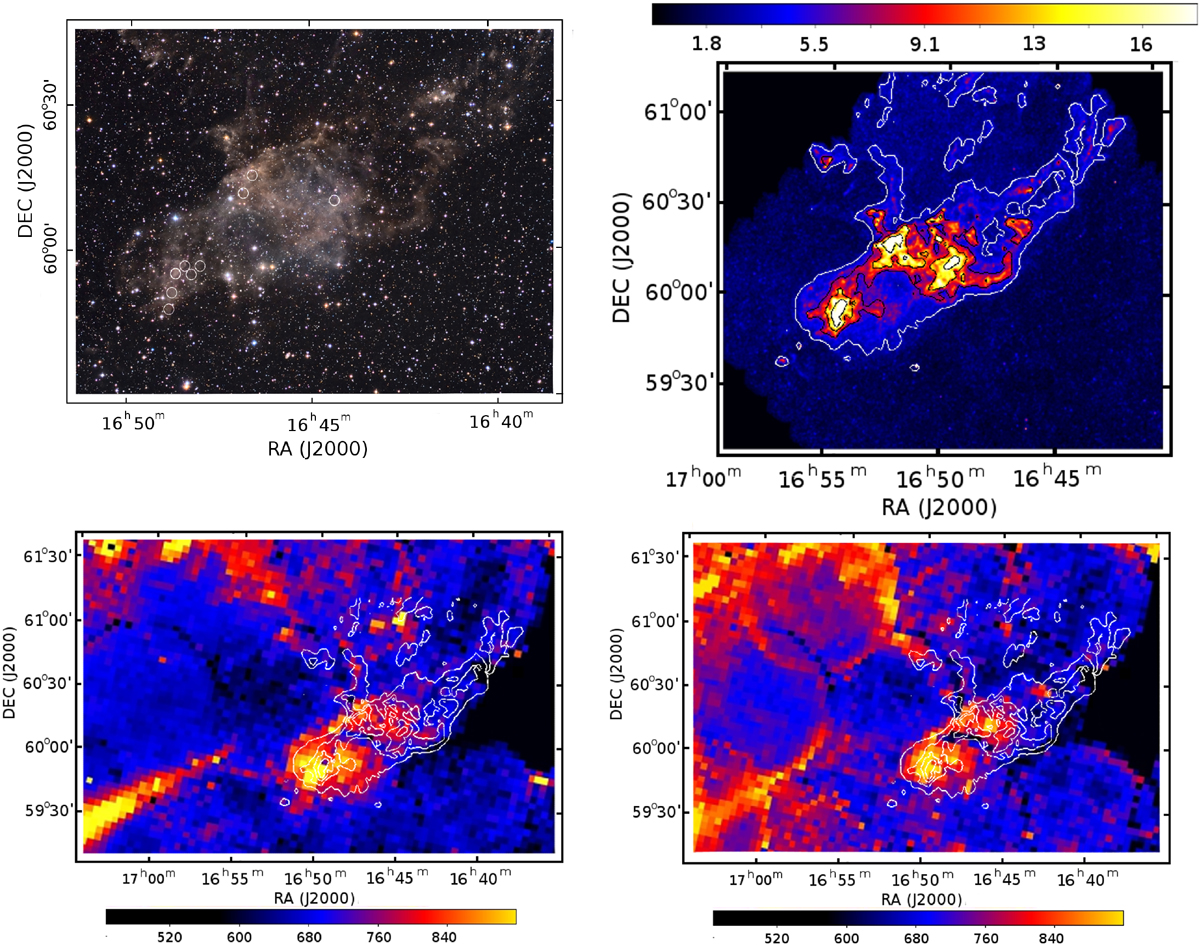

Draco nebula images. Upper left panel: broad band optical; upper right panel: Herschel 250 μm; bottom left panel: GALEX FUV; bottom right panel: GALEX NUV. The 250 μm contours at 3, 6.6, 11, and 17 MJy sr⁻¹ are shown and are also overplotted on the FUV and NUV images. They correspond to A_V values of ~0.15, 0.36, 0.57, and 0.78 mag. The unit in the FUV and NUV colour bars is ph s⁻¹ cm⁻² sr⁻¹ Å ⁻¹. Pixel size forFUV and NUV is 3′. At Eastern edge of the UV images the tip of the Sujatha et al. (2010) foreground filament is seen. The black area on the Western edge has no FUV and NUV data. Some artefacts of the GALEX 1. °25 field edges remain. The optical image was provided by Jim Thommes.
