Fig. B.3

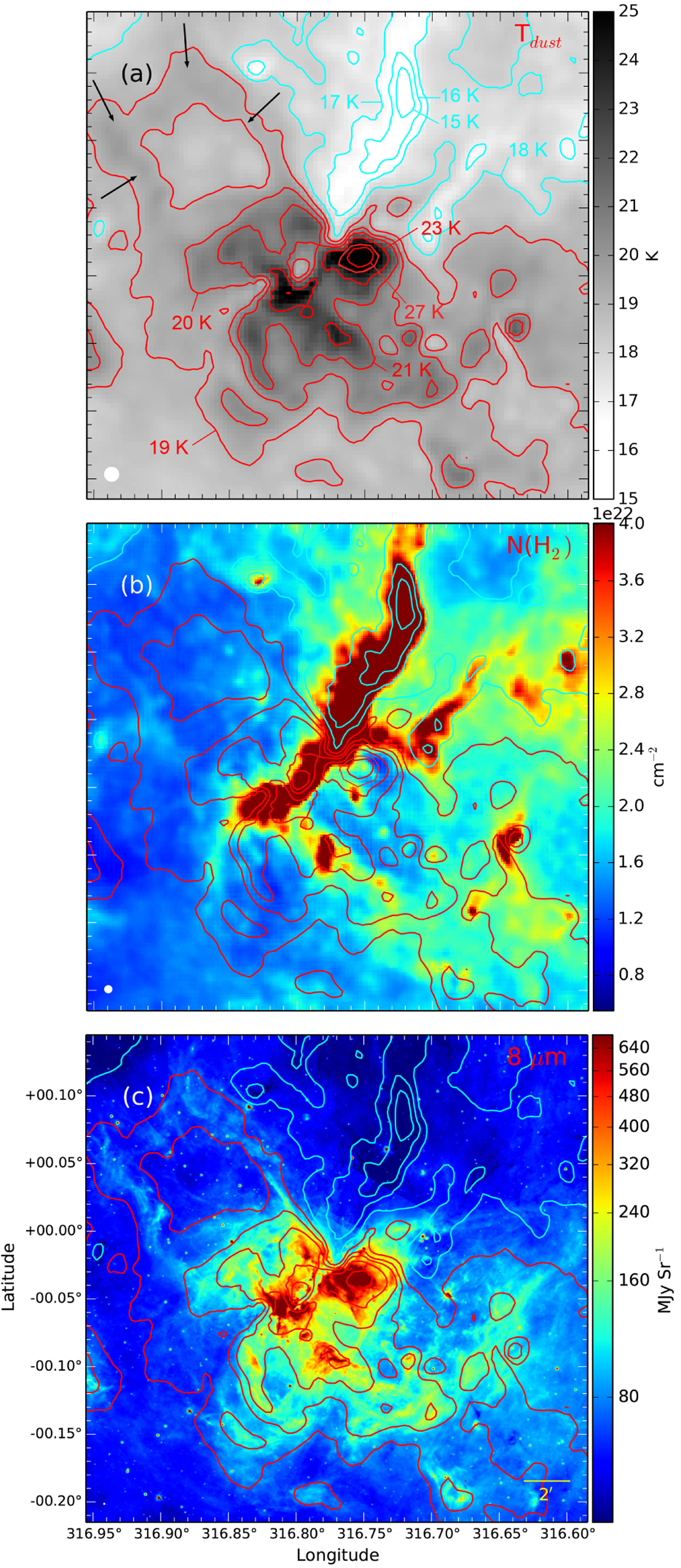

Dust temperature in the field of G316.80–00.05. The red contours are for temperatures of 19 K, 20 K, 21 K, 23 K, 25 K, and 27 K while the blue ones are for 15 K, 16 K, 17 K, and 18 K. The contours are superimposed on the dust temperature map (panel a), column density map (panel b), and the 8.0 μm image (panel c). The black arrows in the temperature map show the warm (19 K–20 K) PDR surrounding the large northern lobe.
