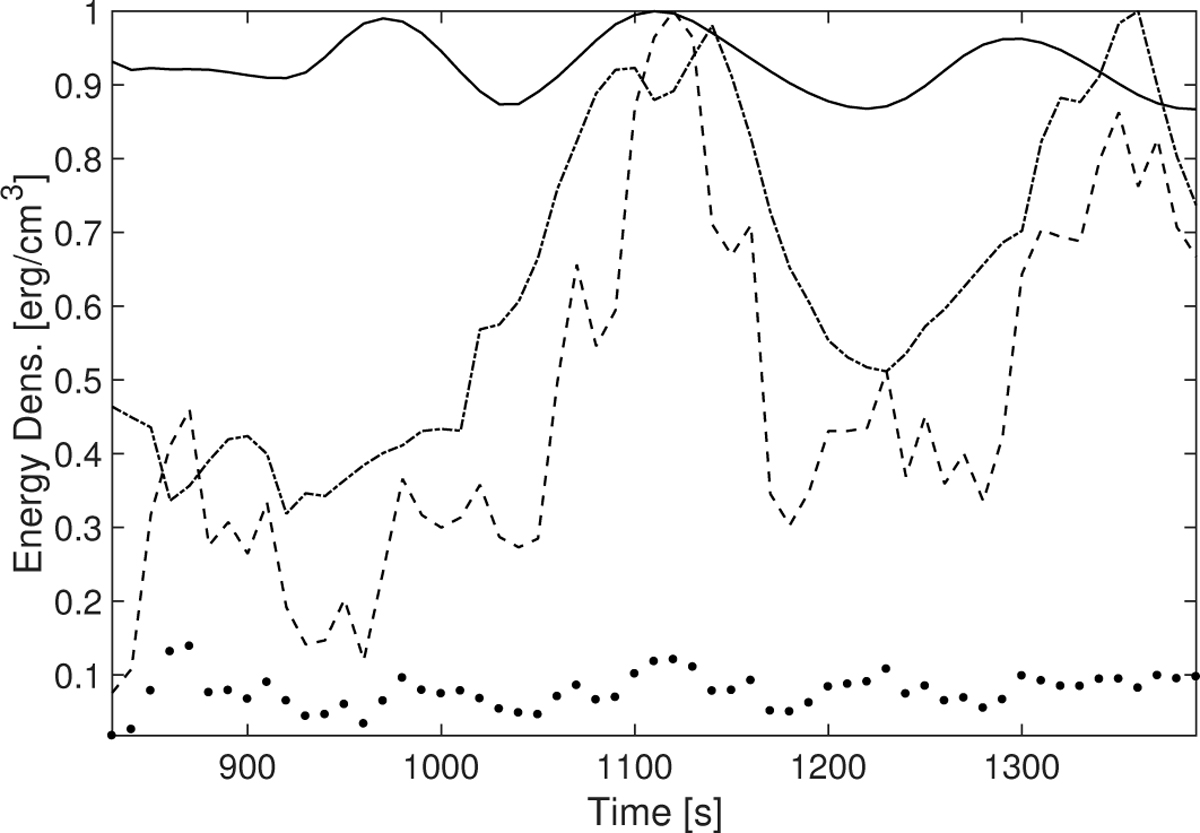

Fig. 3.


Evolution of the following normalised quantities to their respective amplitude. Magnetic energy density (line) with maximum value 4.6 × 108 erg cm−3, joule heating density of the identified features (dashed line) with maximum value 105 erg cm−3, total joule heating density released in the ROI (dash-dotted line) with maximum value 9.3 × 105 erg cm−3, and ratio of resolved to total joule heating density (dots) are shown.
