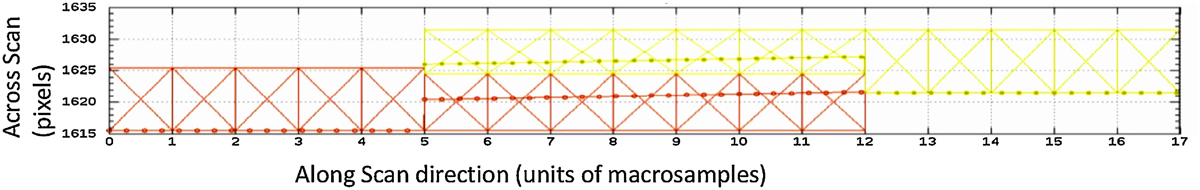

Window overlapping in RVS for Class 1 and 2 windows as implemented pre-launch. The macrosamples are numbered along the bottom, so that there are 12 macrosamples per spectrum (yellow and orange). The vertical axis is an example pixel number in the spatial direction. Spectral overlap occurs over macrosamples 6–12, and the window width is apportionedequally (to the nearest integer) over this region. As they are Class 1 and 2 windows, they will be collapsed in the spatial direction at the readout node of the CCDs. In the overlap region, the track of the peak of the spectrum is shown as dots, while outside of it, the dots have no meaning.
