Fig. 5

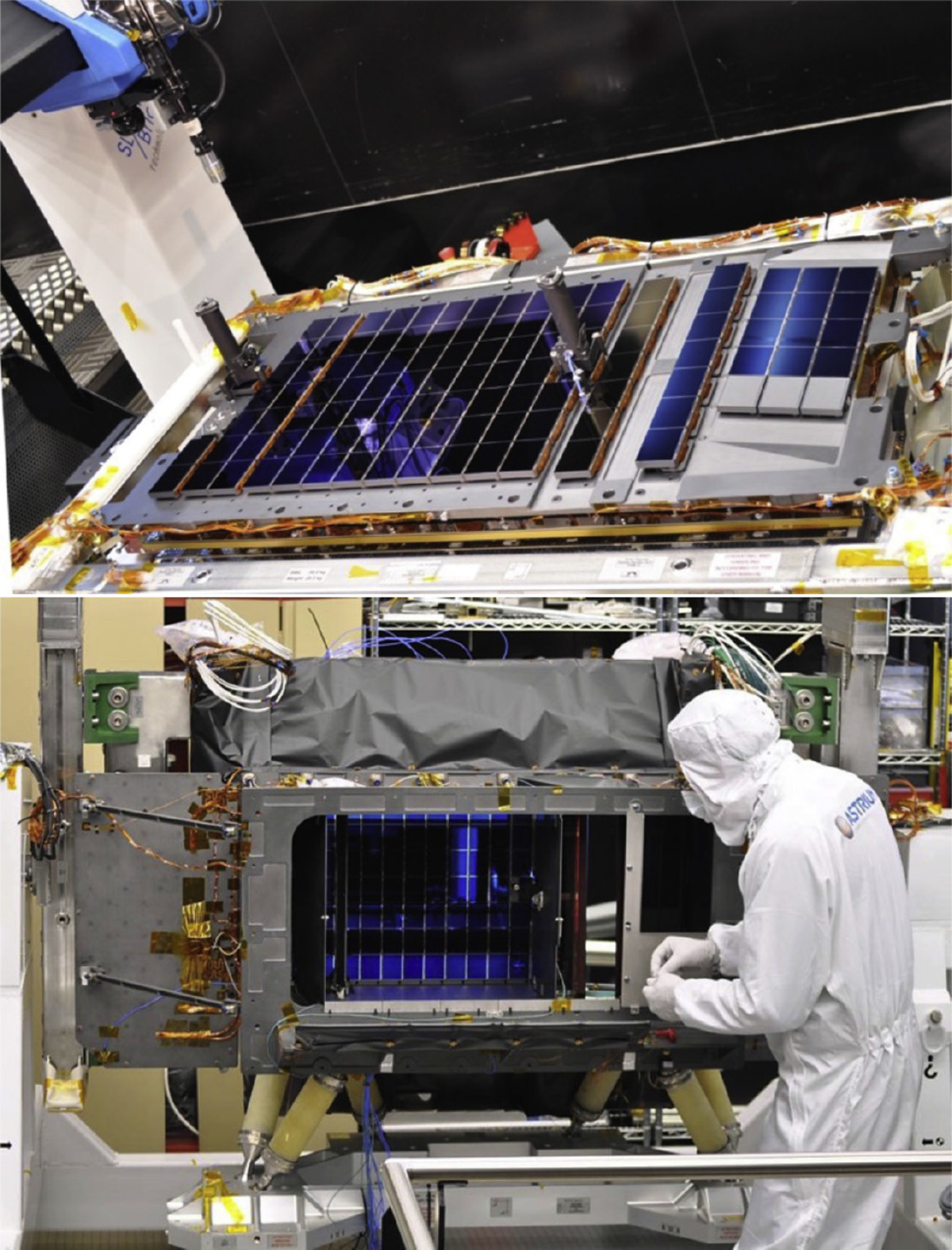

Top: Gaia focal plane during assembly. The 14 SkyMapper CCDs are the first two full vertical strips on the left of the SiC structure and the 12 RVS CCDs on the right (the fifth row of white rectangles are not CCDs but are used in thermal control). Bottom: integrated focal plane showing the baffles and radiator (extended structure on each side). Again, the RVS CCDs are on the right.
