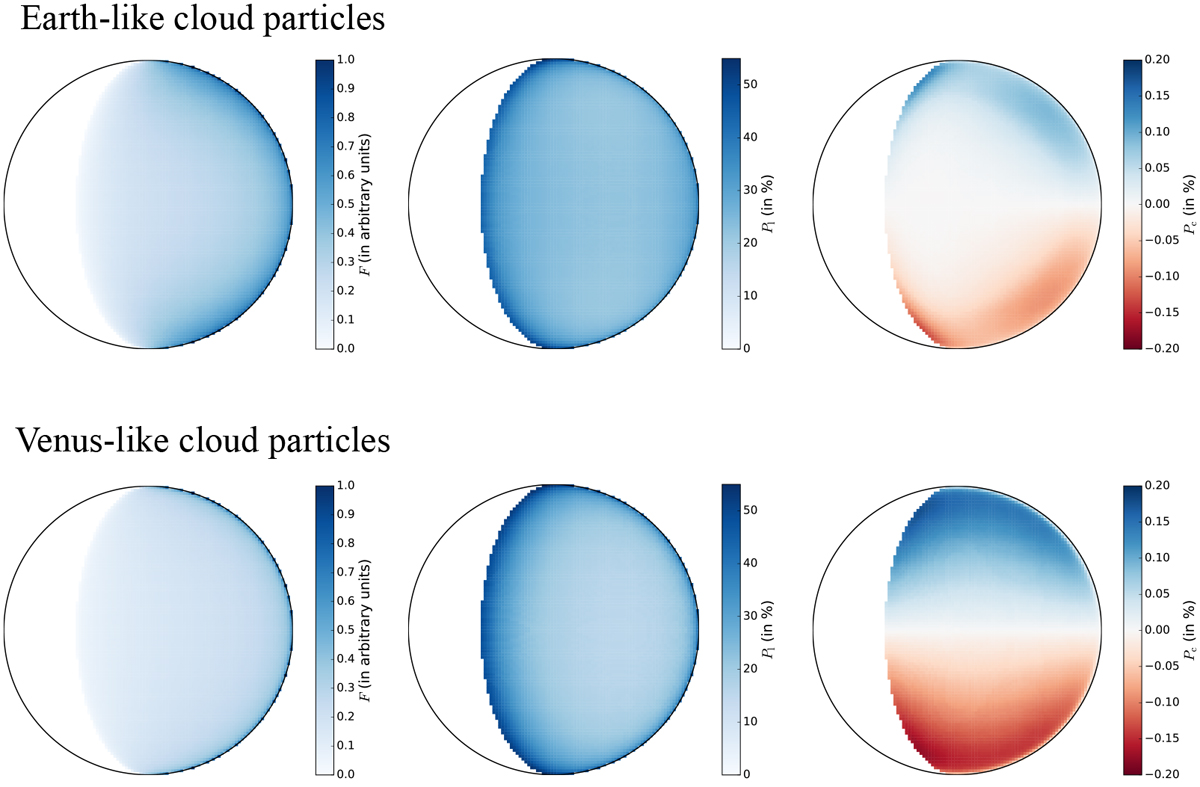

Fig. 3

Reflected light signals of planets with horizontally homogeneous clouds composed of Earth-like cloud particles (top row) or Venus-like cloud particles (bottom row), at a phase angle α of 60°. For each model planet, the cloud optical thickness bc is 2.0, the cloud bottom is at 2.0 km, its top at 4.0 km (see Fig. 1), and the surface is black. Left column: total flux F (normalized to the maximum on the disk); middle column: degree of linear polarization Pl; right column: degree of circular polarization Pc. Integrated across the planetary disk, Pl = 25.5% for the Earth-like clouds and 23.8 % for the Venus-like clouds, in both cases with the polarization direction perpendicular to the planetary scattering plane.
