Fig. 5

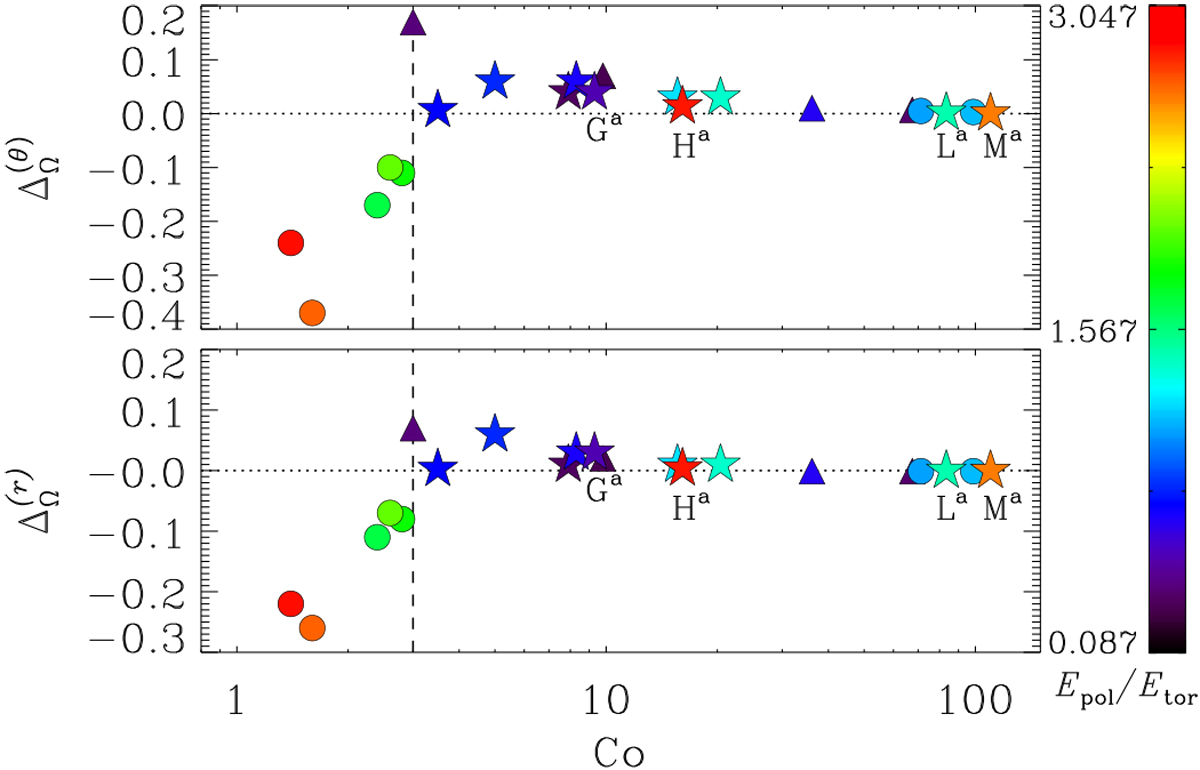

Relative latitudinal differential rotation (upper panel) and relative radial differential rotation (lower panel) for all 2π runs. The shape of the plotted symbols indicates the degree of nonaxisymmetry of the magnetic field (sphere – axisymmetric; triangle – mixed; star – nonaxisymmetric), while the color indicates the ratio of poloidal energy to toroidal energy ; see Table 2. The dashed line (Co = 3) indicates the transition from antisolar to solar-like latitudinal differential rotation and the dotted lines indicate the zero. The high-resolution runs Ga, Ha, La, and Ma are indicated for better visibility.
