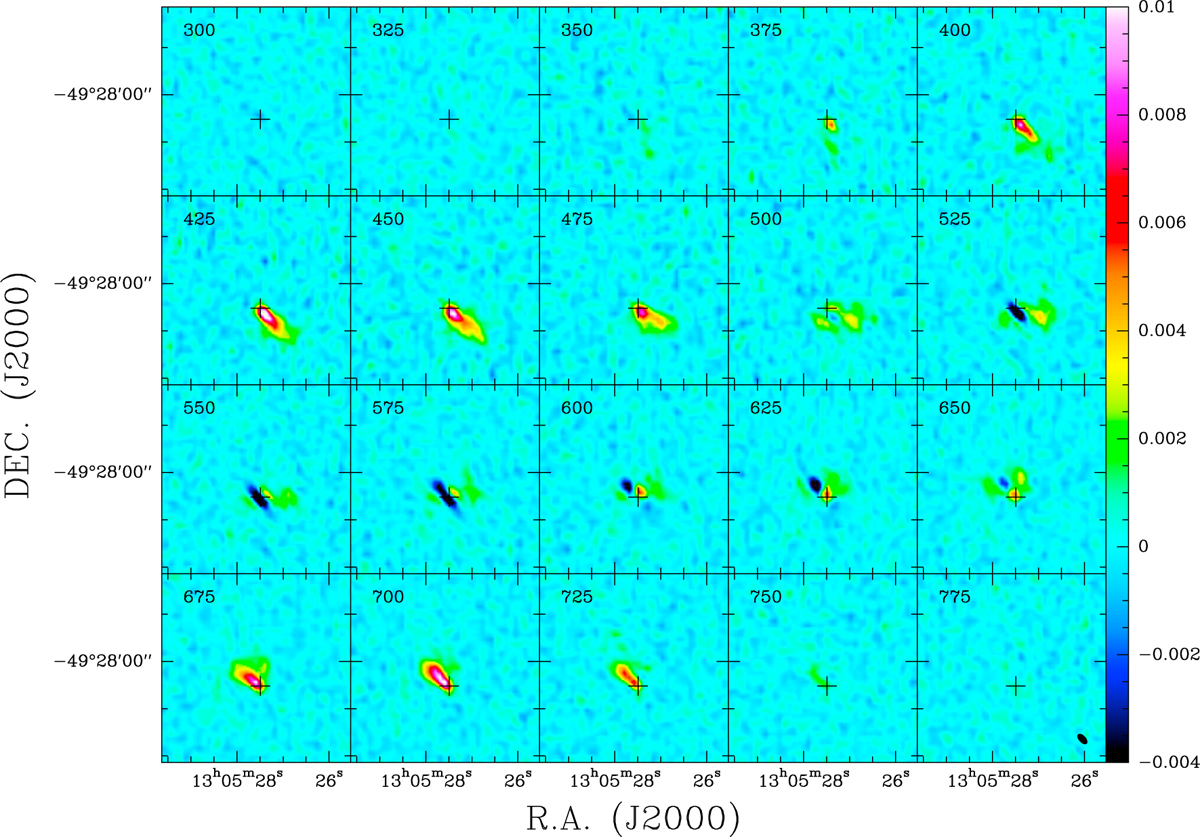

Fig. A.2


H13C14N (H13 CN) J = 1 → 0 channel maps. For the units of velocity, ordinate, and wedge as well as for the position of the crosses, see Fig. A.1. As in case of the main isotopic species, absorption is present near the systemic velocities between 525 and 650 km s−1. The value 0.01 Jy corresponds to ≈0.42 K. The beam size is shown in the lower right corner of the figure.
