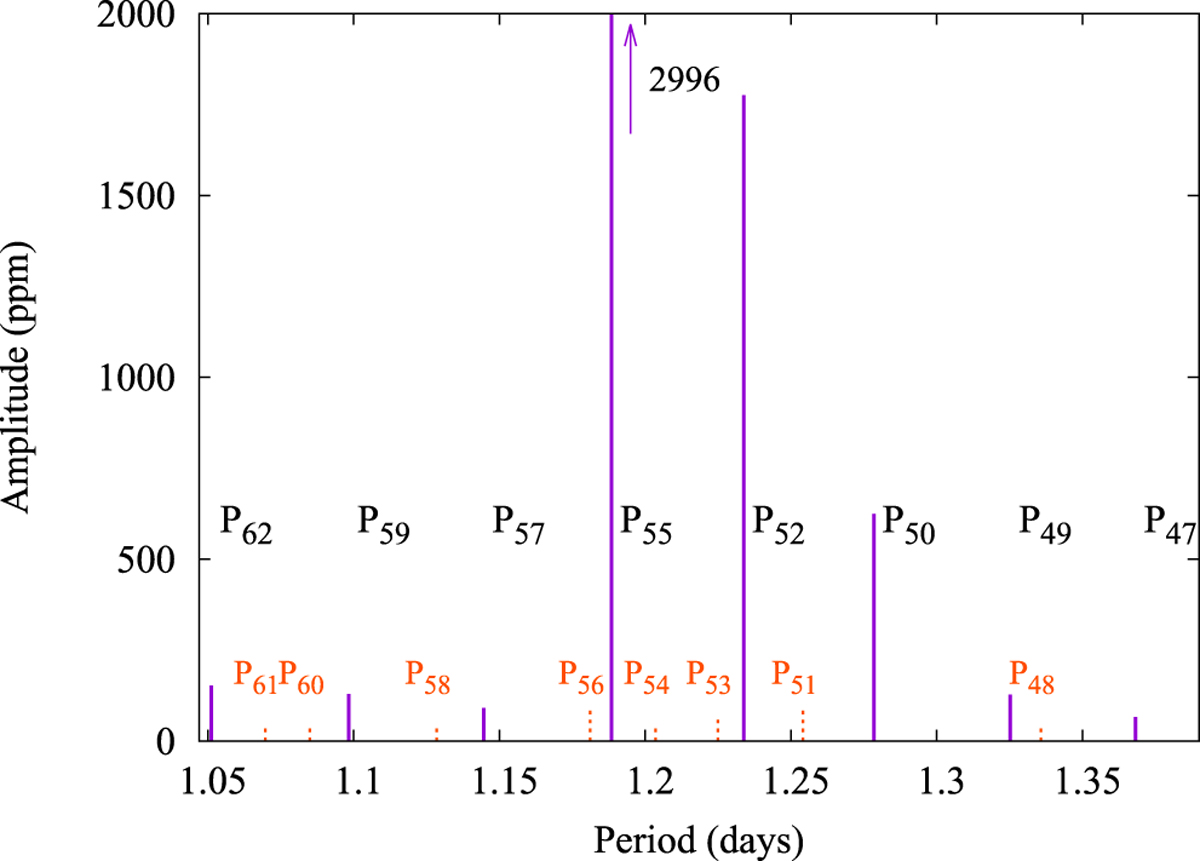

Fig. 31


Period diagram in the m = −2 gravity mode spectrum for star CoRoT 101486436 (star No 1, LRC1). The periods shown are calculated in the co-rotating frame for m = −2 with frot = 2.1 c d−1; eight periods (P62, P59, P57, P55, P52, P50, P49, and P47) are nearly allconsecutive with a spacing period of 4400 ± 200 s (magenta ticks). The red ticks are periods also computed in the co-rotating frame of the star. These periods correspond to low amplitude frequencies, which are “doublons”, harmonics, or perhaps combinations.
