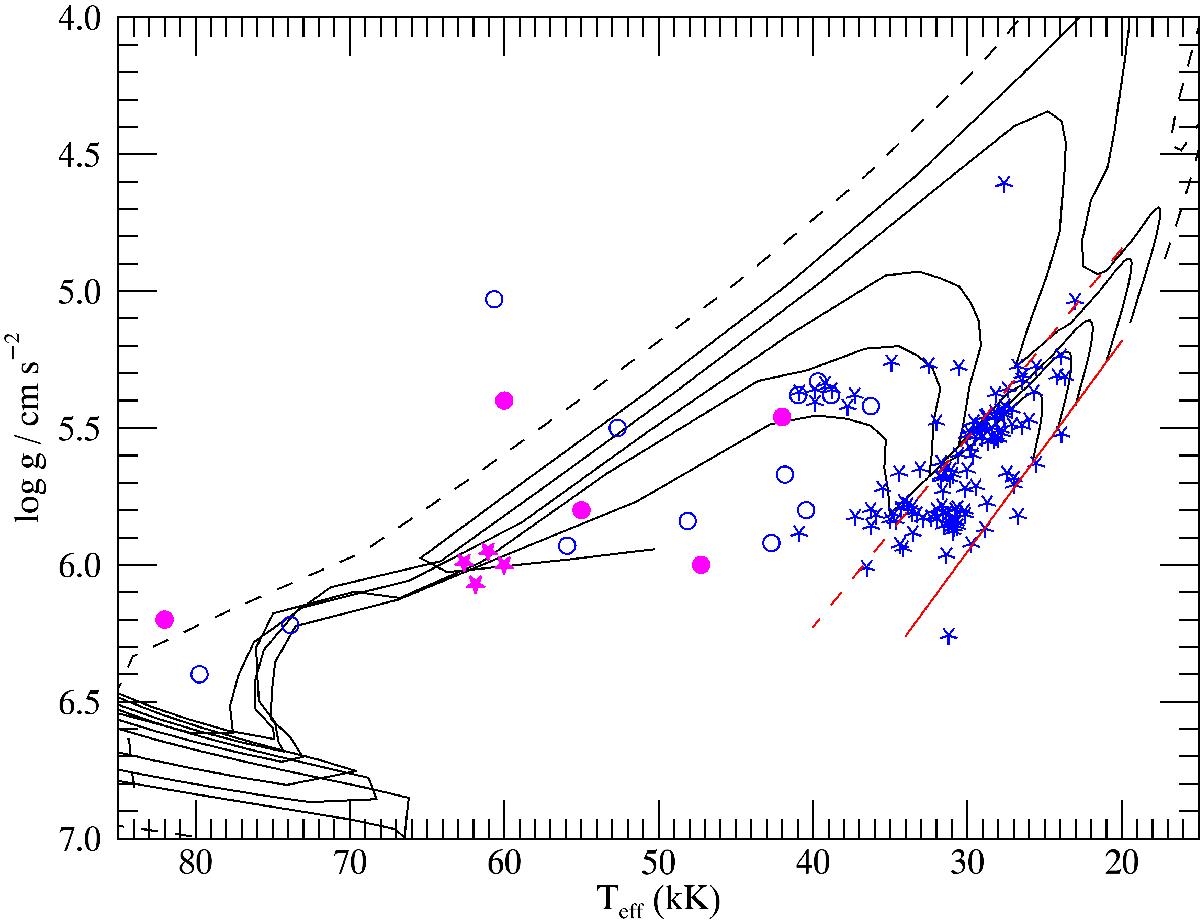

Fig. 7


Position of our four stars (magenta stars) in the Teff−log g diagram compared to other hydrogen-rich sdBs and sdOs and evolutionary tracks. The post-EHB tracks are from the Y = 0.288 set of Dorman et al. (1993) for total masses of 0.471, 0.473, 0.475, 0.480, and 0.485 M from left to right. An additional post-early AGB track is also illustrated (dashed 0.495 M). The red lines define the EHB region where core helium burning takes place. Observed data are from subsamples of H-rich stars taken from Fontaine et al. (2014, asterisk) and Stroeer et al. (2007, circle). Also included are the position of three other sdOs for which chemical abundances are known (AA Dor, Feige 110, and BD+28°4211) as well as EC 114812303 and CPD71°172B (magenta filled circles).
