Fig. 11

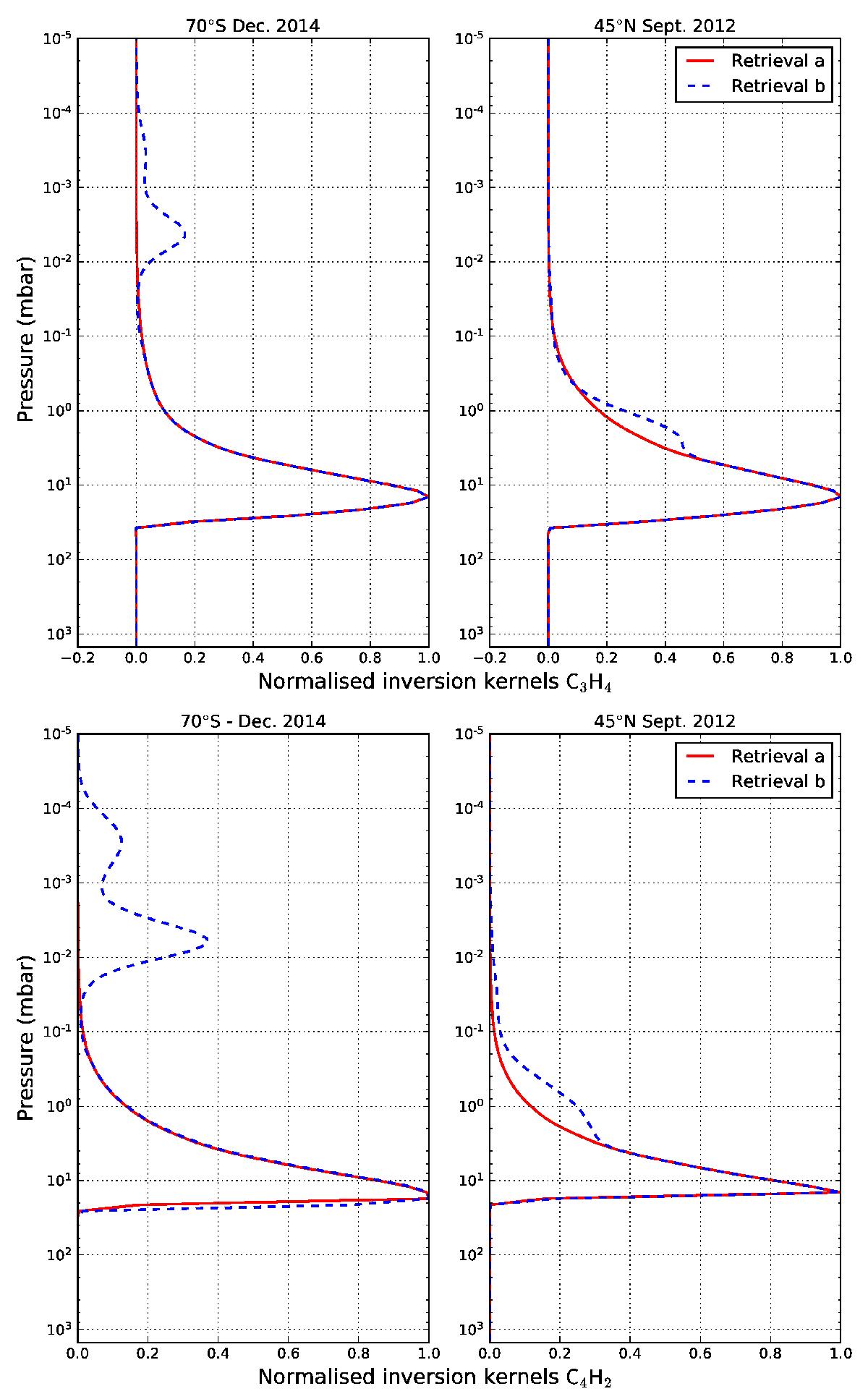

Inversion kernels for retrievals a (red solid line) and b (blue dashed lines) for C3H4 (top) and C4H2 (bottom). They were calculated from the nadir retrievals performed with the observations at 70°S in December 2014 (left panels) and 45°N in September 2012 (right panels). The vertical gradients of the a priori profiles can affect the shape of the contribution functions.
