Fig. 5

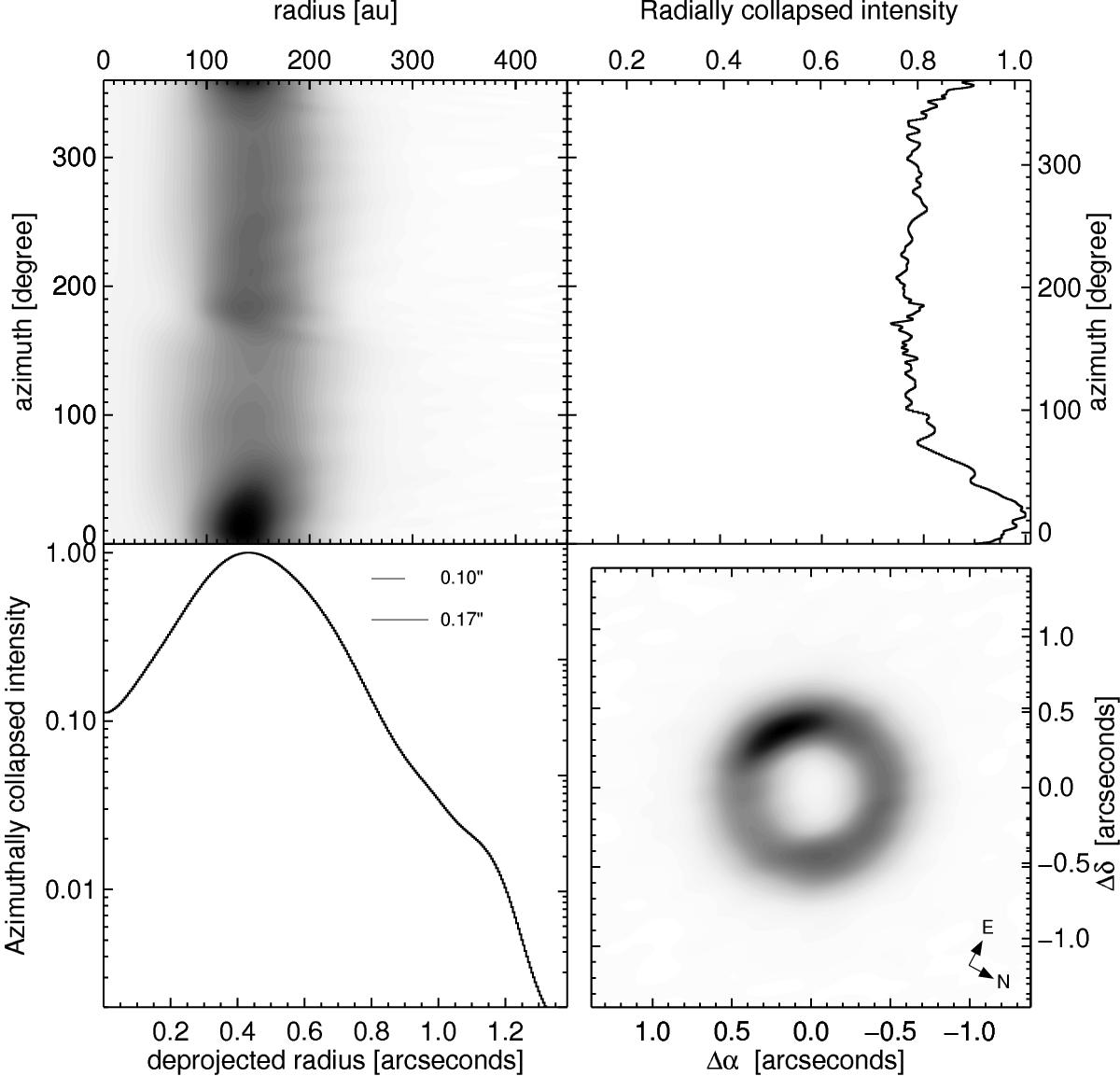

ALMA band 7 image reconstructed using superuniform weighting, deprojected using the disk inclination and rotated with the position angle listed in Table 2 to put the major axis of the disk at 0° (north; bottom right panel), converted to polar coordinates (top left panel). This polar map is collapsed along the radial and azimuthal axes to yield the azimuthal intensity distribution (top right) and the radial intensity distribution (bottom left). In this last panel we also show the size of the beam minor and major axis for reference.
