Fig. 7

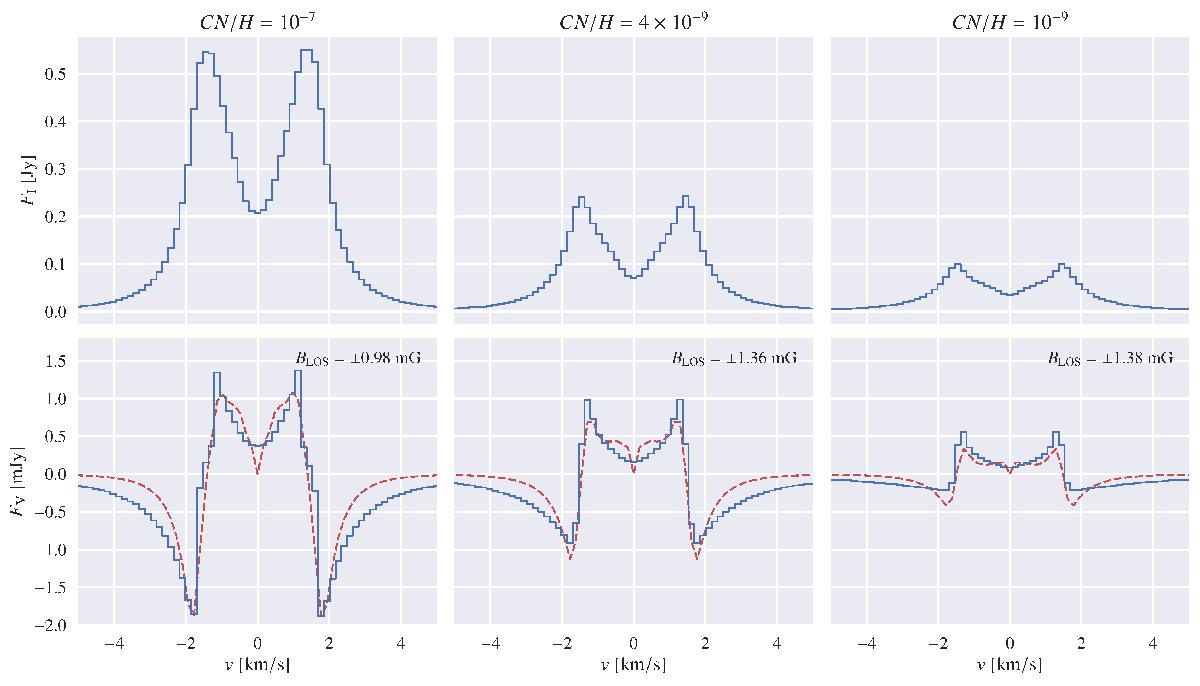

Net flux (FI, upper) and circularly polarized fraction (FV, lower) simulated for the reference circumstellar disk model (113.144 GHz CN line emission). In the lower images, the derivative of FI is shown and fitted to FV to estimate the LOS magnetic field strength (red dashed line). The profiles on the left, middle, and right side are simulated with an abundance of CN / H =10-7, CN / H =4 × 10-9, and CN / H =10-9, respectively.
