Fig. 11

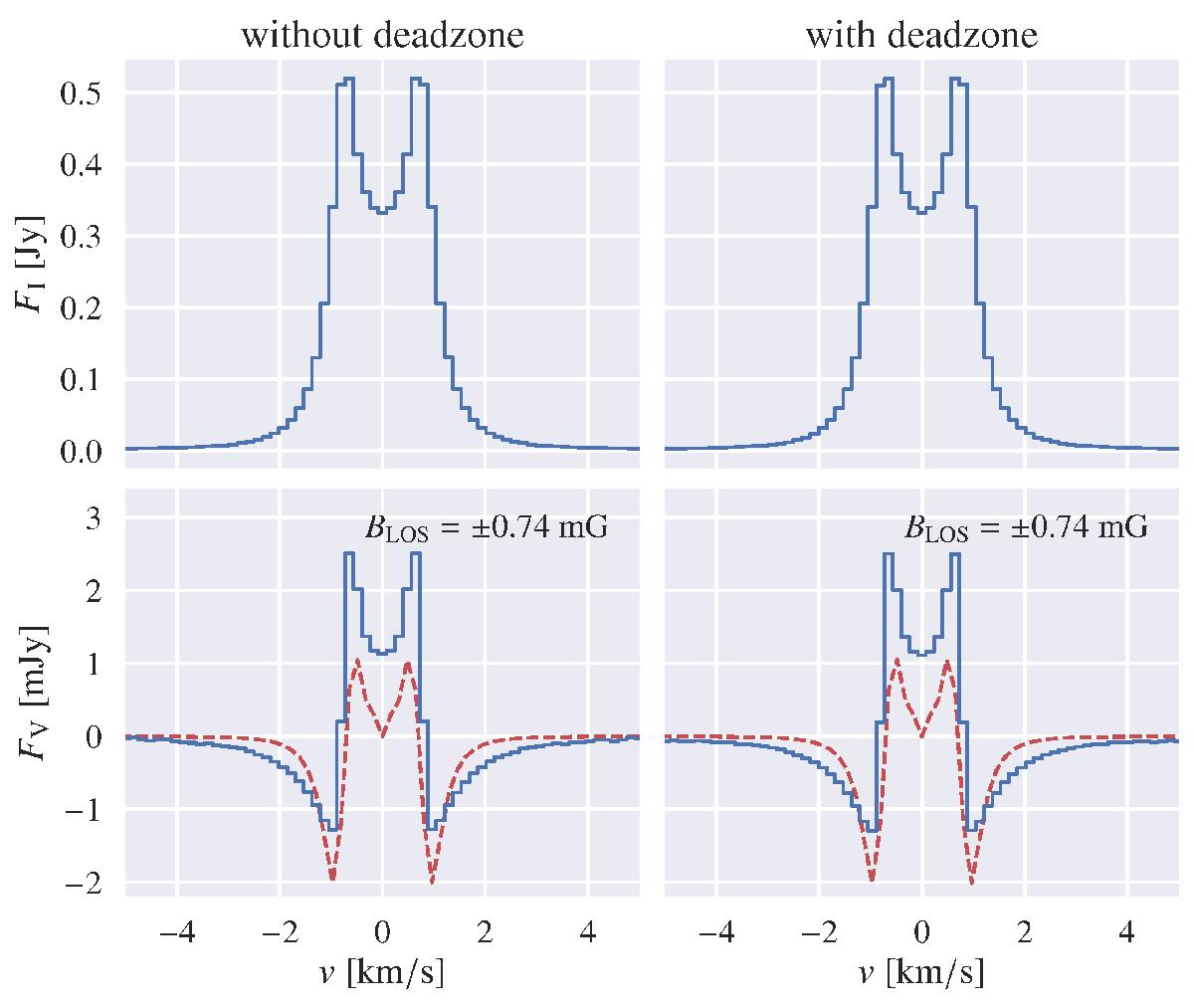

Net flux (FI, upper) and circularly polarized fraction (FV, lower) simulated for the reference circumstellar disk model (113.144 GHz CN line emission). In the lower images, the derivative of FI is shown and fitted to FV to estimate the LOS magnetic field strength (red dashed line). The profiles on the left are simulated with the reference disk model with an inclination of 30°. The simulated profiles on the right side use the reference disk model with an inclination of 30° and a dead zone close to the star. The extent of this dead zone ranges from the inner disk edge to a radial distance of ~5 AU and from the midplane to a vertical distance of ~0.5 AU in both directions.
