Fig. 11


Open with DEXTER Download original image

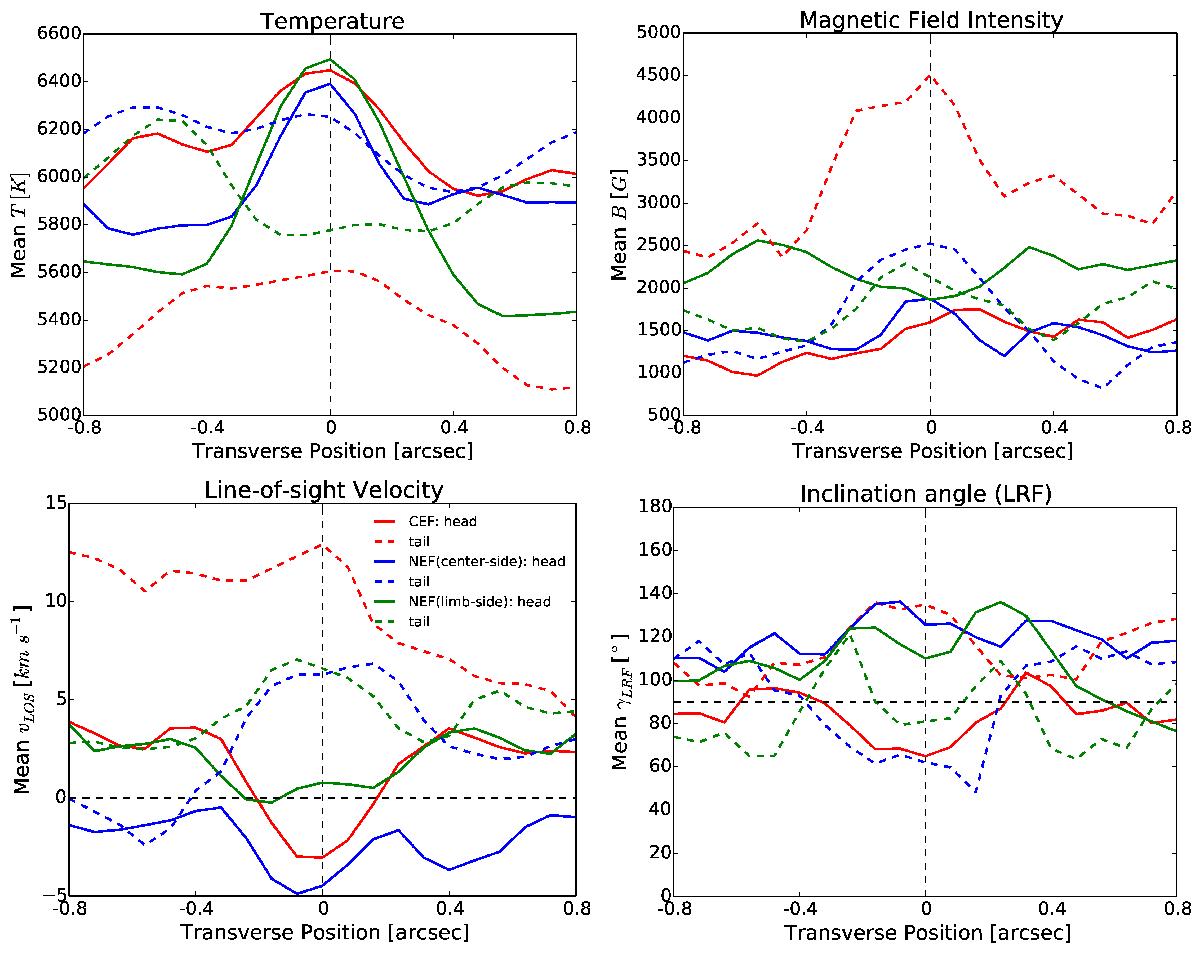

Variation of T, B, vLOS and γLRF along the transversal cuts marked by vertical dashed lines in Fig. 9 at log (τ) = 0: heads (solid lines) and tails (dashed lines). The color designation is the same as in Fig. 10. Black dashed vertical lines represent the central axis of the averaged filaments.
