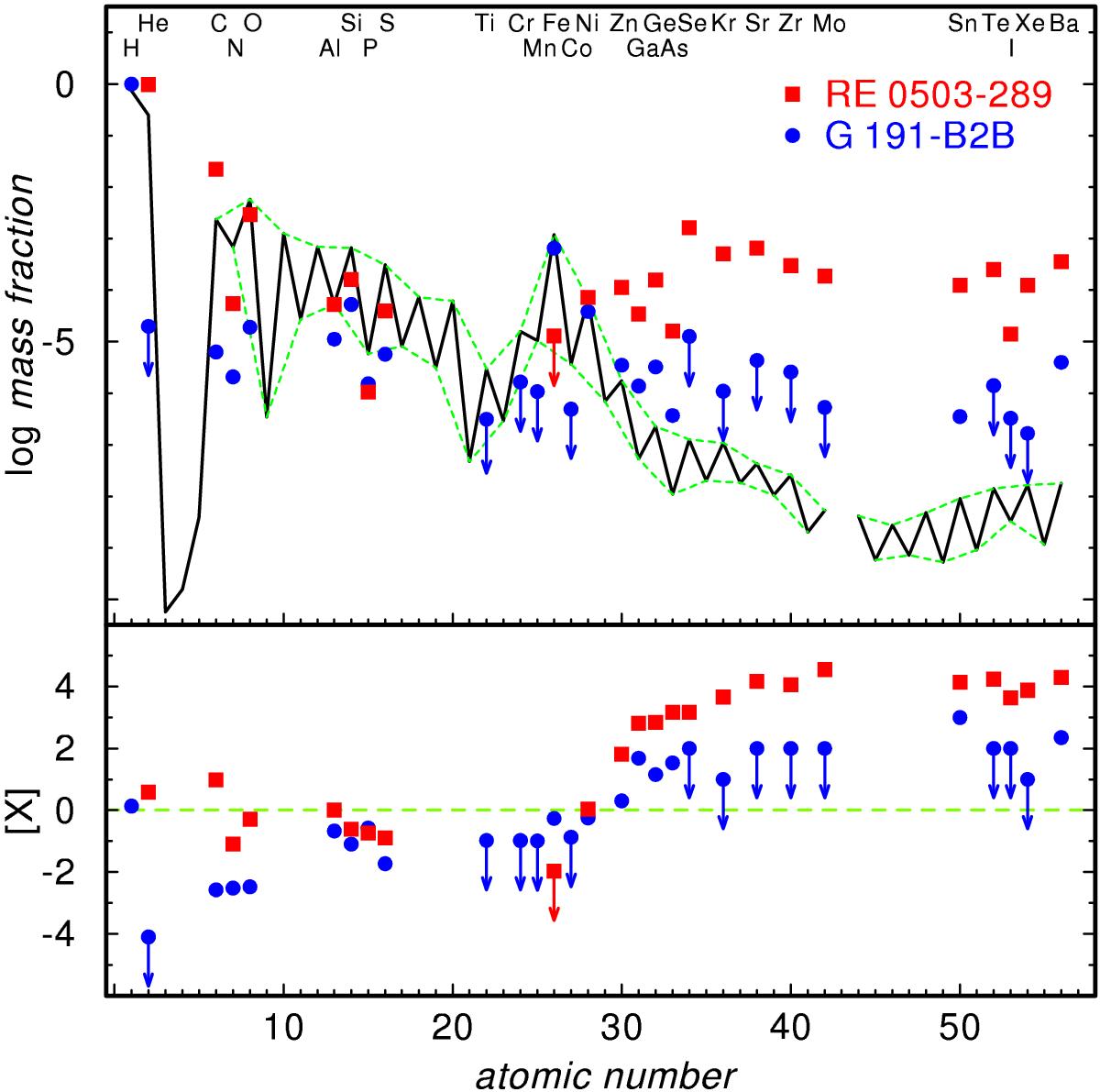

Fig. 1

Solar abundances (Asplund et al. 2009; Scott et al. 2015a,b; Grevesse et al. 2015, thick line; the dashed lines connect the elements with even and with odd atomic number) compared with the determined photospheric abundances of RE 0503−289 (red squares, Dreizler & Werner 1996; Rauch et al. 2012, 2014a,b, 2015, 2016a,b, 2017, and this work). The uncertainties of the WD abundances are about 0.2 dex in general. Arrows indicate upper limits. Top panel: abundances given as logarithmic mass fractions. Bottom panel: abundance ratios to respective solar values, [X] denotes log (fraction/solar fraction) of species X. The dashed, green line indicates solar abundances.
