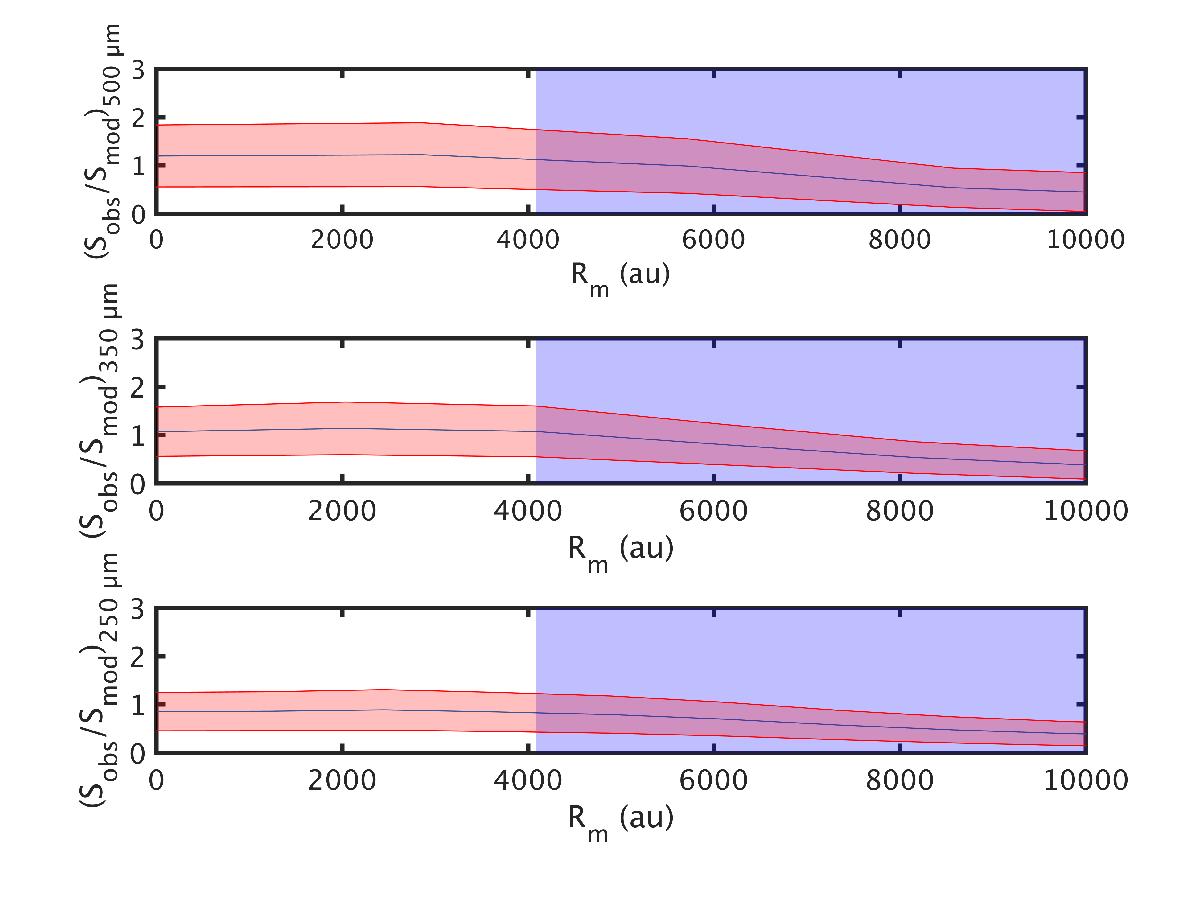

Ratio between the observed and the modeled surface brightnesses at 500 μm (top), 350 μm (middle), and 250 μm (bottom) as a function of the geometric mean radius of the ellipses, as explained in Fig. 6, using the temperature and density profiles from Keto et al. (2015) and an opacity value of κ_{250 μm} = 0.2 ± 0.1 cm² g^-1 and β = 2.3 ± 0.4. The shadowed red region represents the uncertainties on the fluxes, the opacity, and the spectral index. The shaded blue region indicates the zone where the millimeter observed surface brightness is below 3σ as the artificial filtering of Herschel/SPIRE relies on the shape of the 1.2 mm emission (see Sect. 2.2 and Appendix A).
