Fig. 7

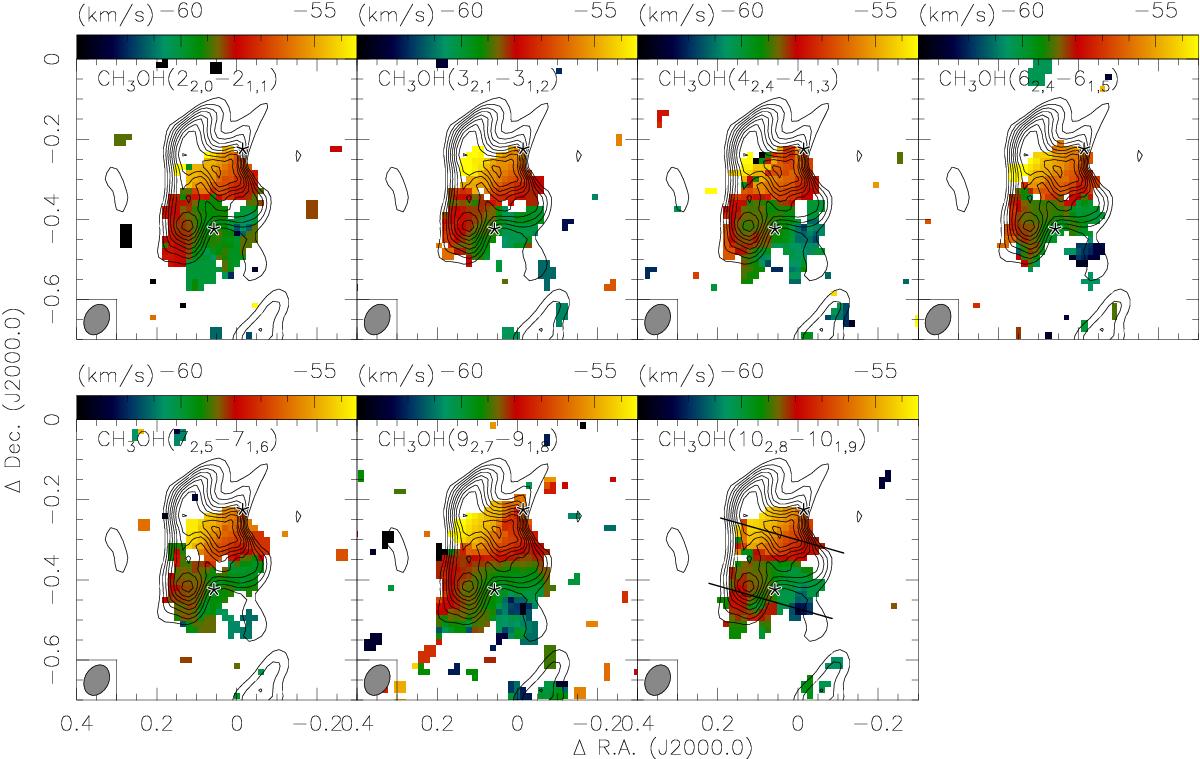

Color-scale presents the 1st moment maps (intensity-weighted velocities) of the CH3OH lines as shown in each panel. The contours show in all panels the 1.2 cm continuum emission in levels of 8% to 98% of the peak emission (7.4 mJy beam-1). The two stars indicate the CH3OH maser positions by Moscadelli & Goddi (2014). The two lines in the bottom right panel indicate the cuts for the position-velocity diagrams shown below.
