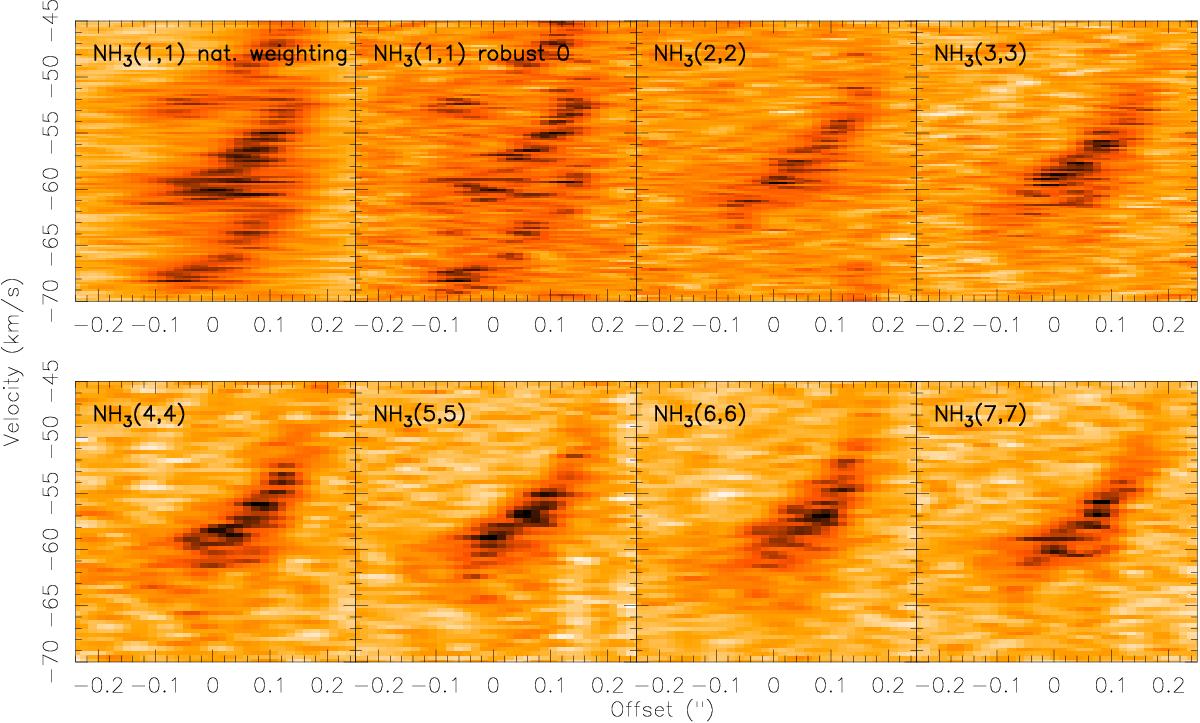

Position-velocity diagrams for the different NH3 inversion lines as indicated in each panel. The direction of the cut is shown in Fig. 4. The top left and top 2nd panels show this cut for natural and robust weighting for the NH3(1, 1) lines, respectively. All other cuts are carried out for the robust weighting case.
