Fig. 12

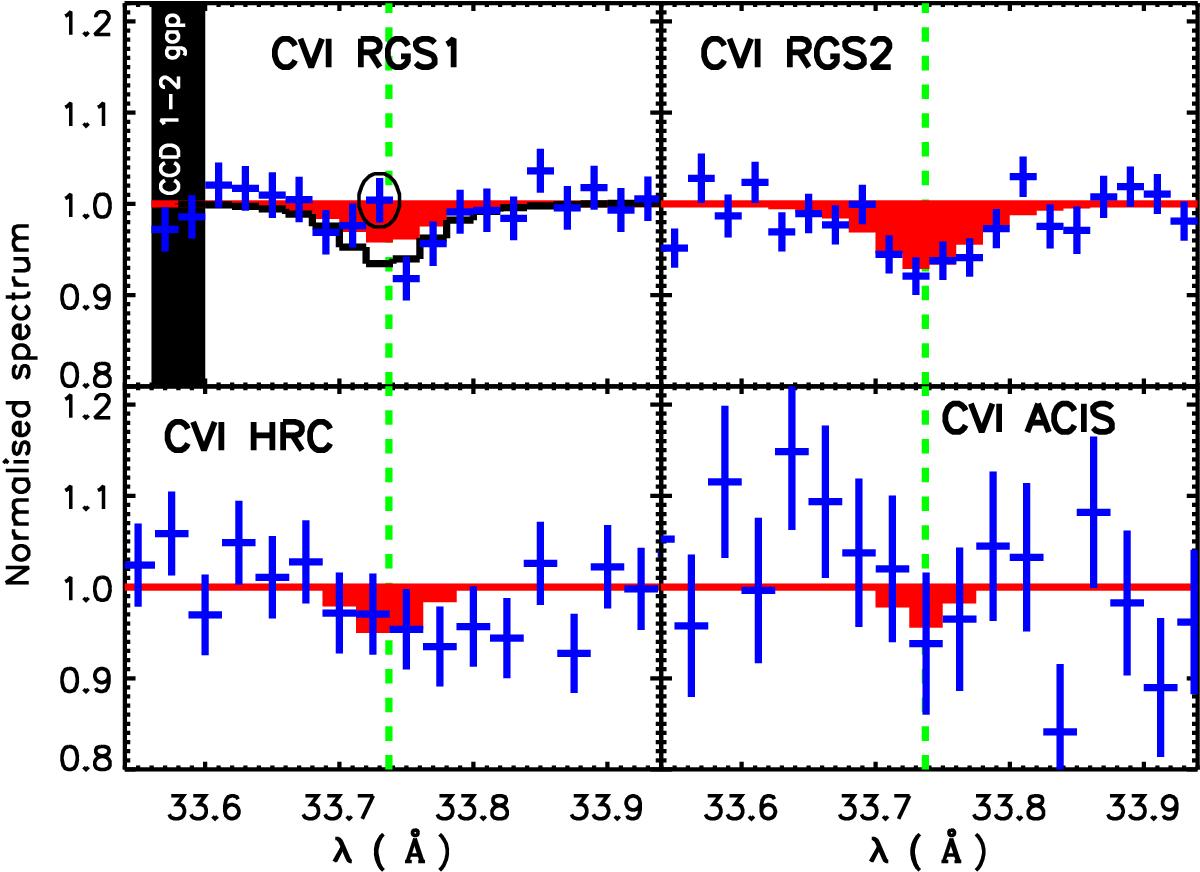

As Fig. 3, but for the C vi line. The gap between the RGS1 CCD 1 and CCD 2 is denoted with a black box. The black line in the upper left panel indicates the best-fit line model when excluding the strongly deviant channel (surrounded by a black ellipse).
