Fig. 3

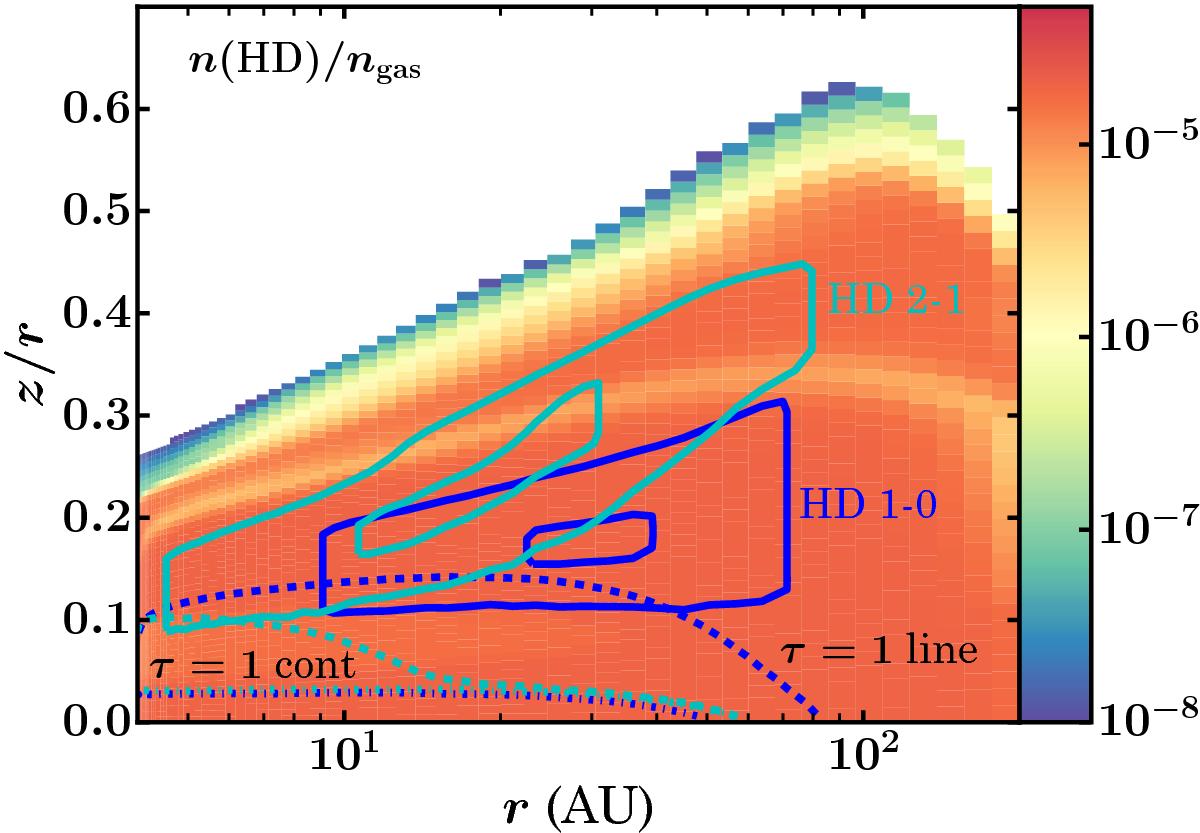

HD abundance structure for a disk model with Mdisk = 2.3 × 10-2M, ψ = 0.3 and hc = 0.1. Colour indicates the number density of HD with respect to the total gas density. The coloured lines correspond the HD 1–0 (blue) and HD 2–1 (light blue), respectively. Solid contours indicate where 25% and 75% of the emission originates from. The dashed (dash-dotted) lines show the τ = 1 surface for the line and continuum opacity, respectively.
