Fig. 3

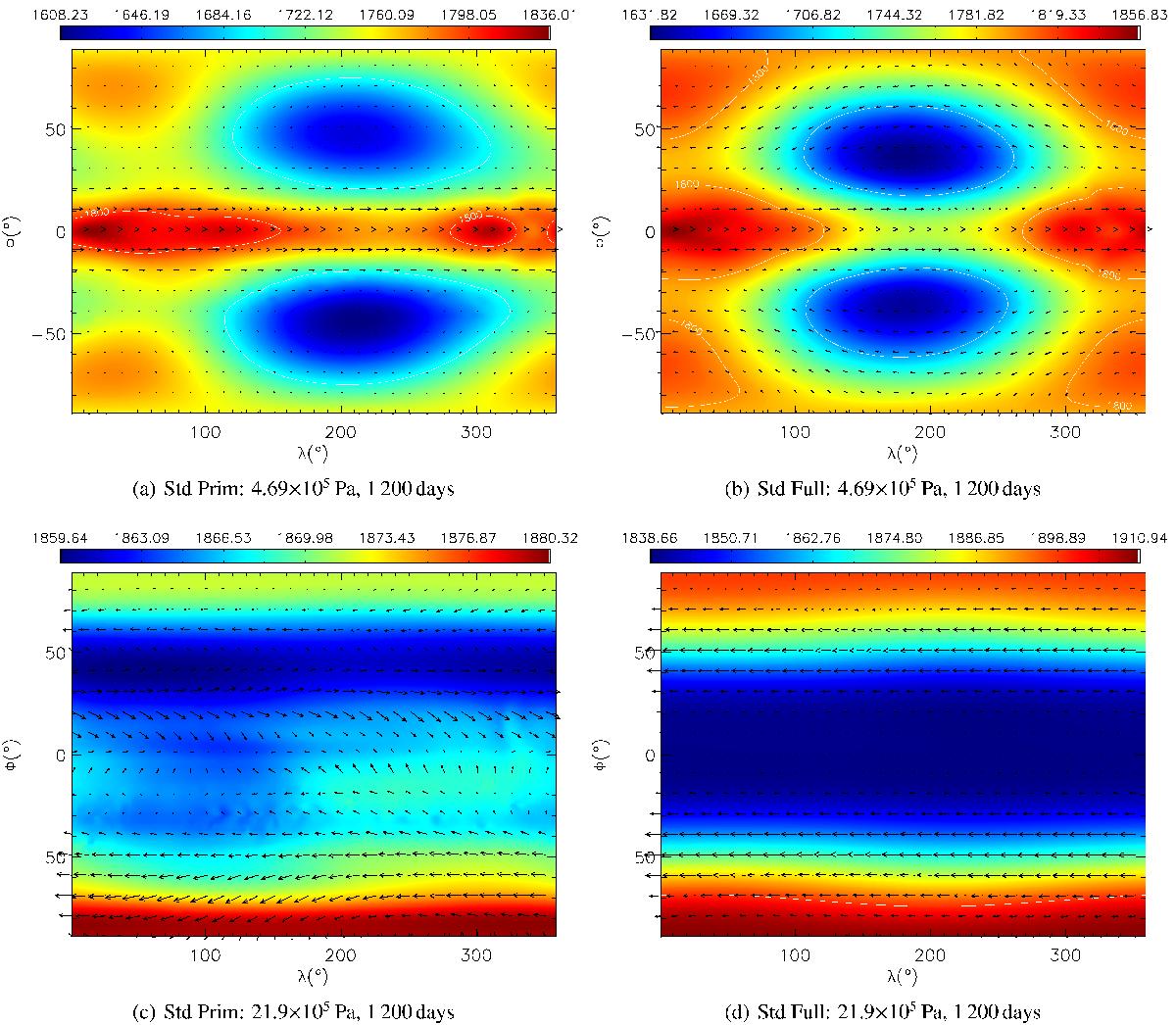

Temperature (K, contours) and horizontal wind velocity (m s-1, vector arrows, note: the number of arrows has been reduced from the simulation resolution in order to aid interpretation) at isobaric surfaces (against latitude, φ° and longitude, λ°) of 4.69 × 105 and 21.9 × 105 Pa (top and bottom rows, respectively) after 1200 days for the Std Prim and Std Full simulations as the left and right columns, respectively (see Table 2 for explanation of simulation names). The maximum magnitudes of the horizontal velocities are ~150, ~200, ~10 & 3 m s-1 for the top left, top right, bottom left & bottom right panels, respectively.
