Fig. 7

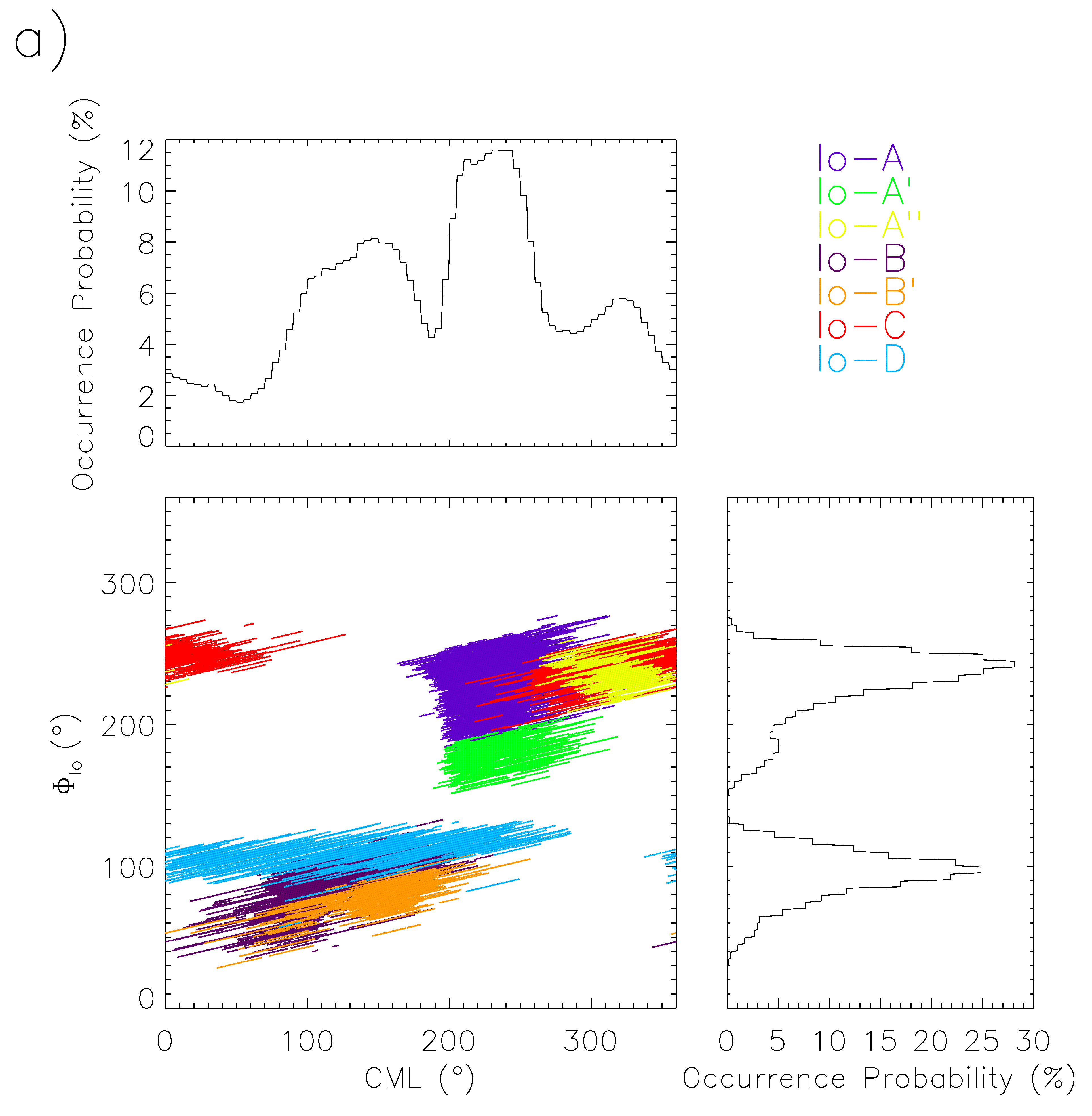

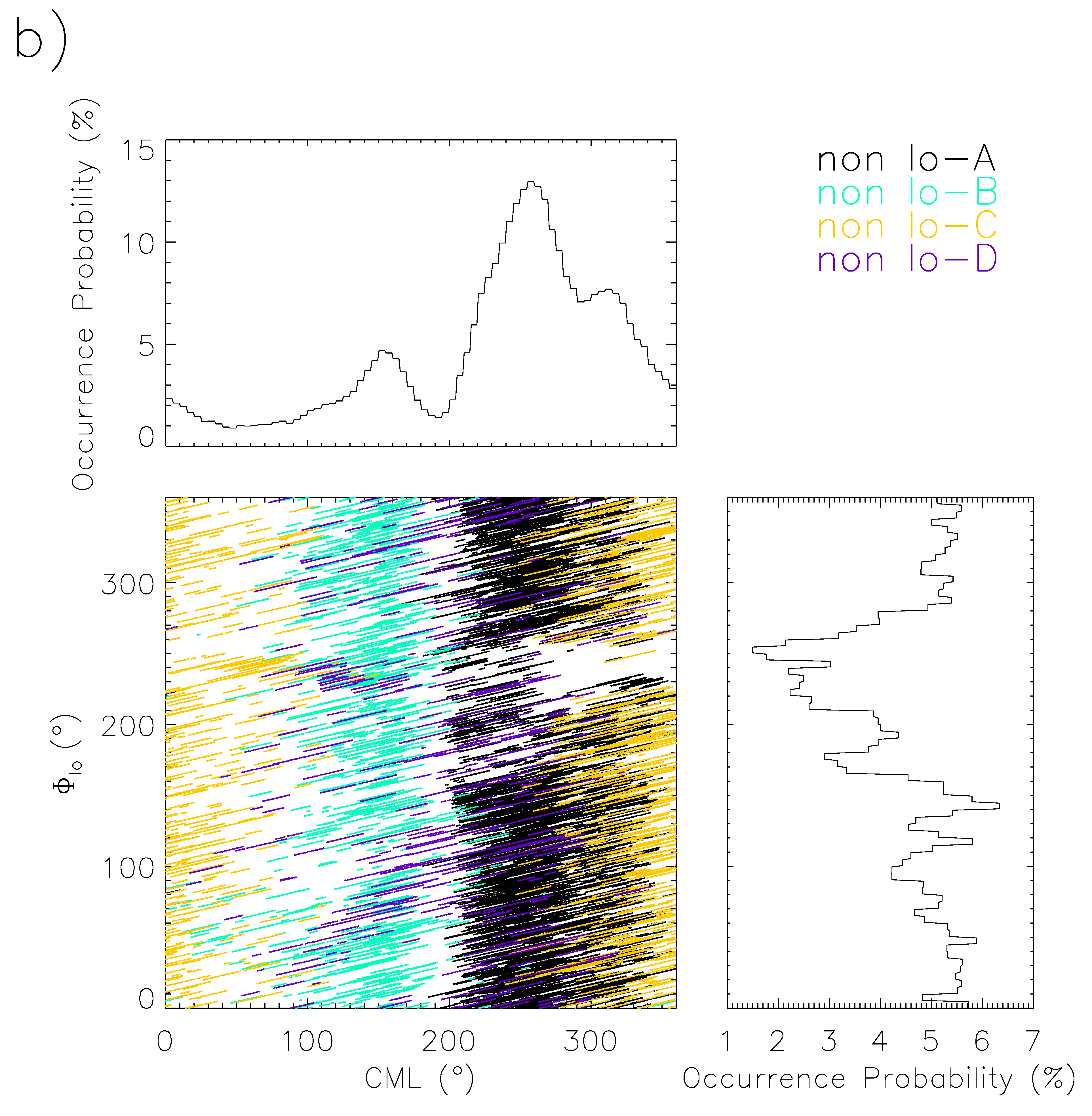

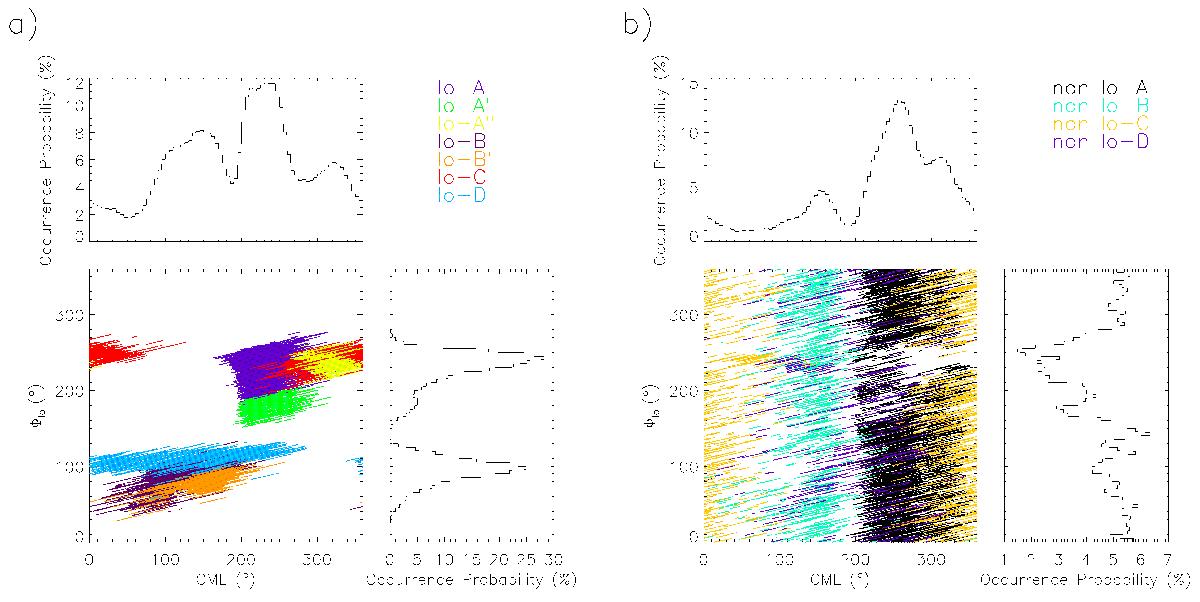

Emission tracks of Io (left) and non-Io (right) emissions in the CML− ΦIo plane over the time interval 1990–2015 and the frequency range 10–40 MHz, color coded as in Fig. 6. In each case, occurrence probabilities are plotted vs. the CML and ΦIo in 5° bins.
