Fig. 5

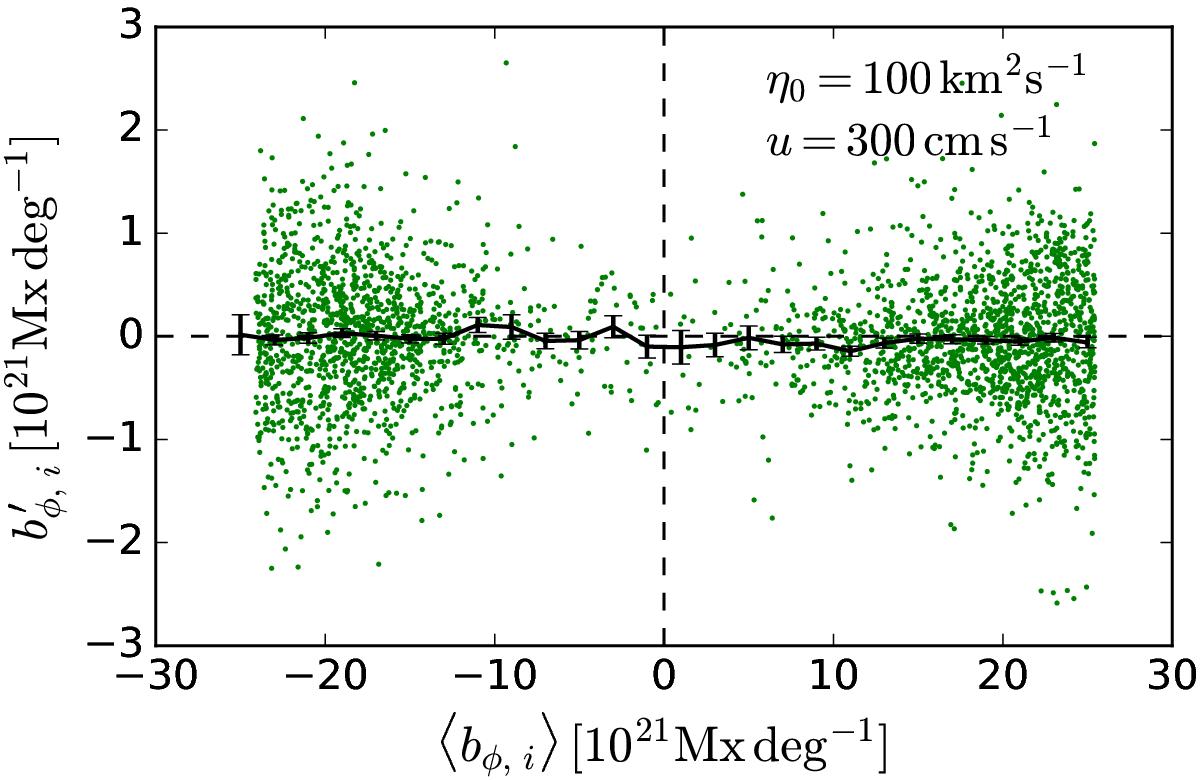

Non-axisymmetric component of the azimuthal flux underlying each emergence in cycle 23 (
) versus its axisymmetric component (⟨ bφ,i ⟩). The emergences are represented by green points. The black line represents the average of over all emergences inside bins of 2 × 1021 Mx deg-1 width. The error bars denote the standard error of the mean.
