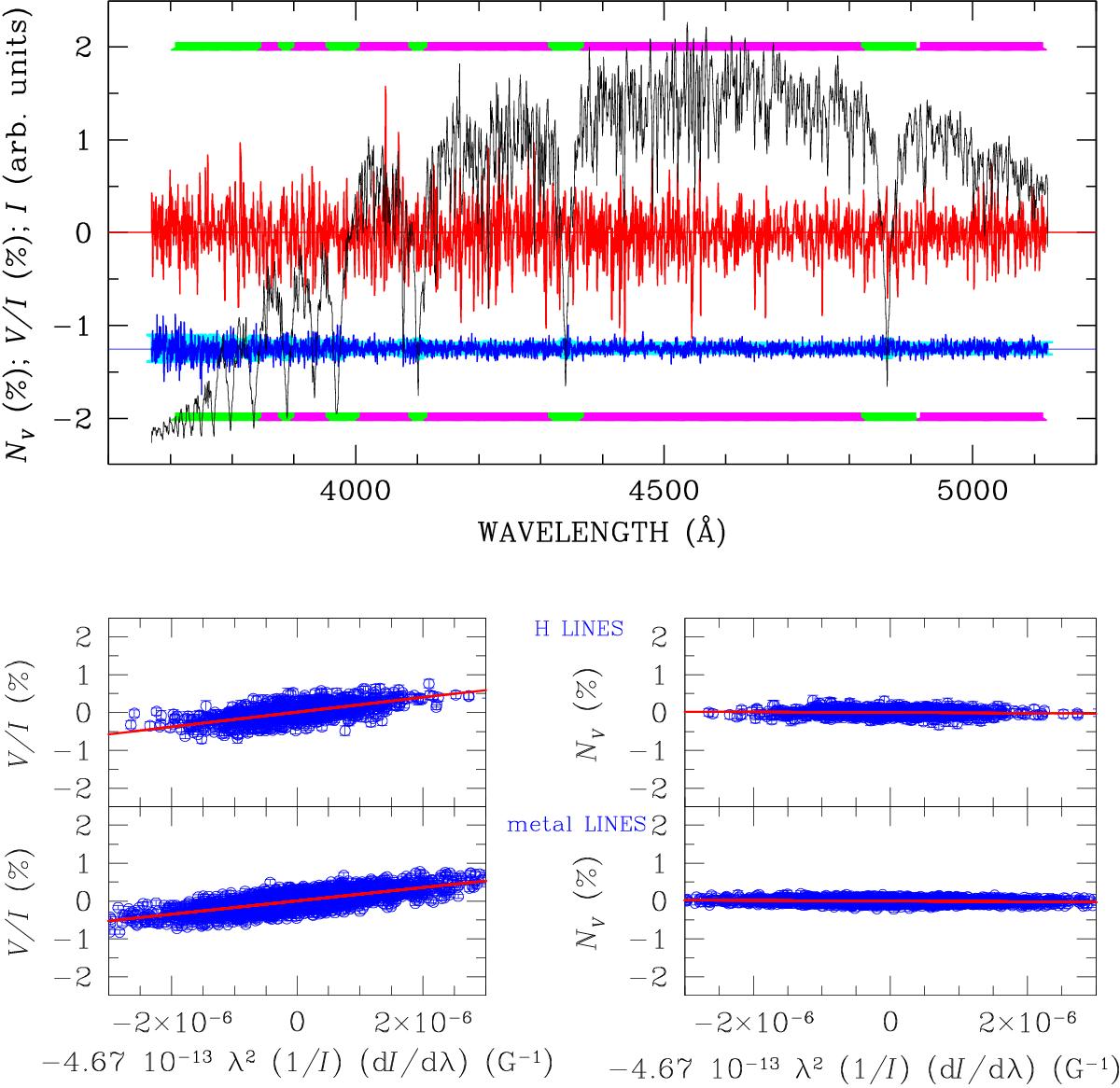

Fig. 1


FORS2 observations of the magnetic Ap star HD 188041. In the upper panel, the black solid line shows the Stokes I spectrum (uncorrected for the transmission function of the atmosphere + telescope and instrument optics); the red solid line shows the reduced Stokes V spectrum, PV = V/I (in % units), and the blue solid line is the null profile offset by − 1.25% for display purpose. The scattering of the null profile about zero is consistent (although sometimes slightly higher than) the 1σ photon-noise error bars, which are also shown centred around − 1.25% and appear as a light blue background to the null profile. Spectral regions highlighted by green bars (at the top and at the bottom of the panel) have been used to determine the Bz value from H Balmer lines, while the magenta bars highlight the spectral regions used to estimate the magnetic field from He and metal lines. The four bottom panels show the best-fit obtained by minimising the χ2 expression of Eq. (1) using the PV spectra (left panels) and the NV spectra (right panels) for H Balmer lines (upper panels) and metal lines (lower panels).
