Fig. 12

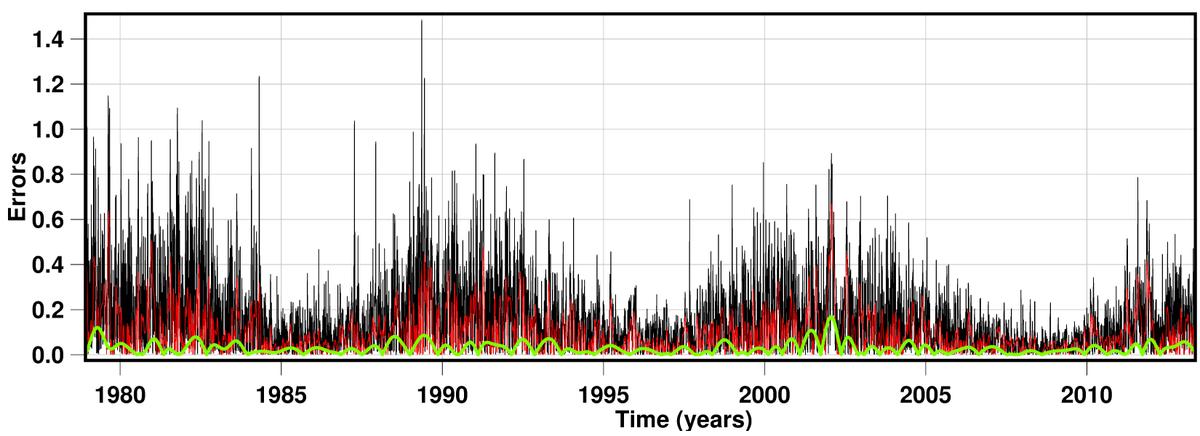

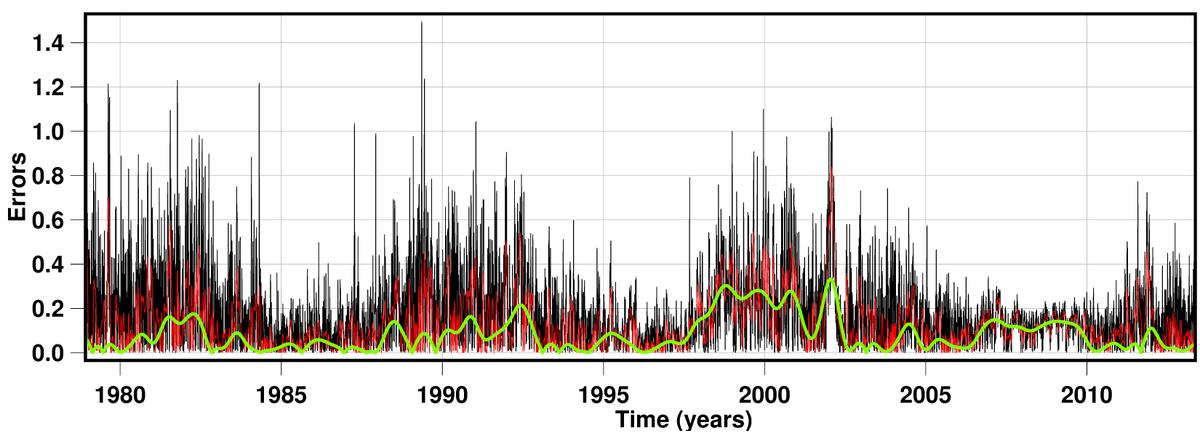

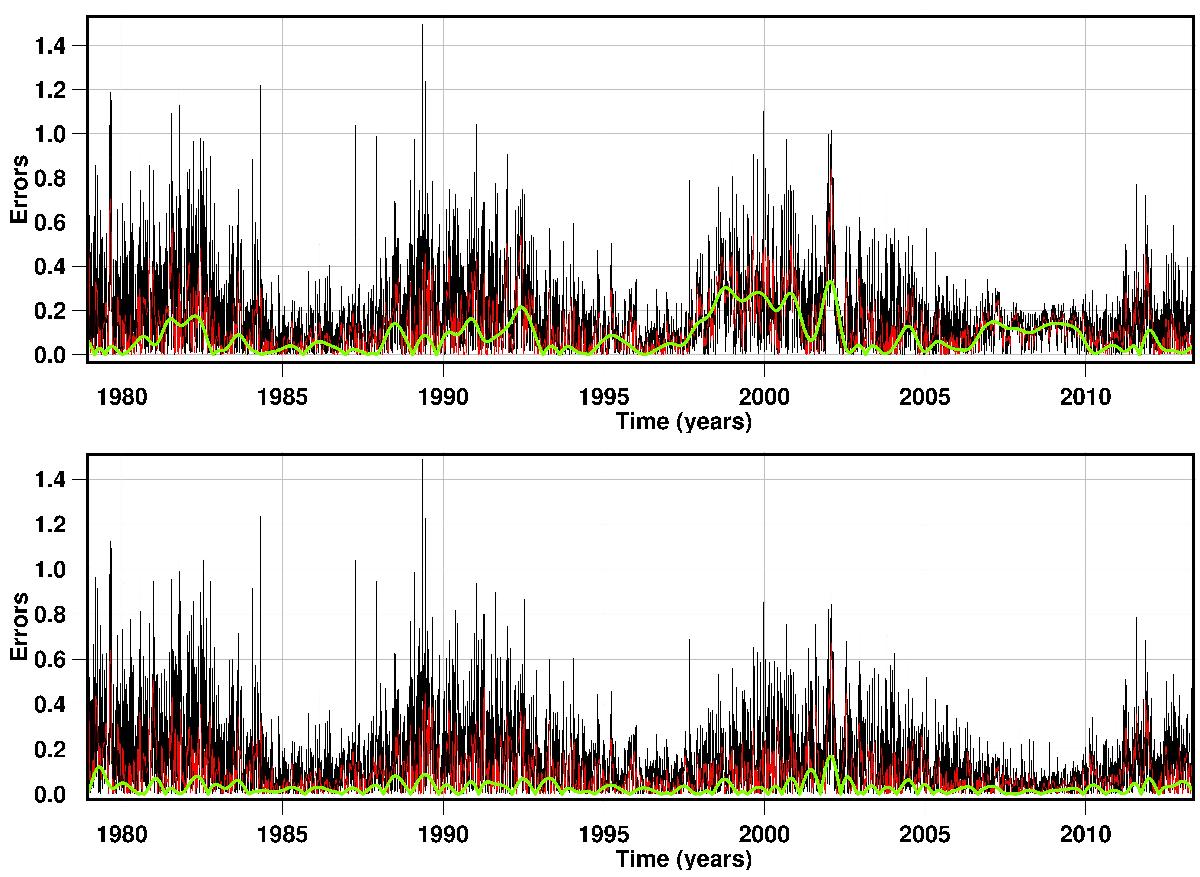

Prediction errors (absolute differences) between predicted curves and targets for the PSI to PMOD pair (upper panel) and corresponding BvM solution (lower panel). Black shows the daily errors, red the errors for filter curves smoothed by W = 30, and green the errors for filter curves smoothed by W = 365 . The data sets are nearly 14 000 points long, and consequently, the plot points essentially mark the local maxima of the curves (for each pixel). The scatter of the errors can also be characterized by their standard deviations: 0.169, 0.113, and 0.076 for the upper panel and 0.156, 0.090, and 0.025 for the lower panel.

This figure is made of several images, please see below:
