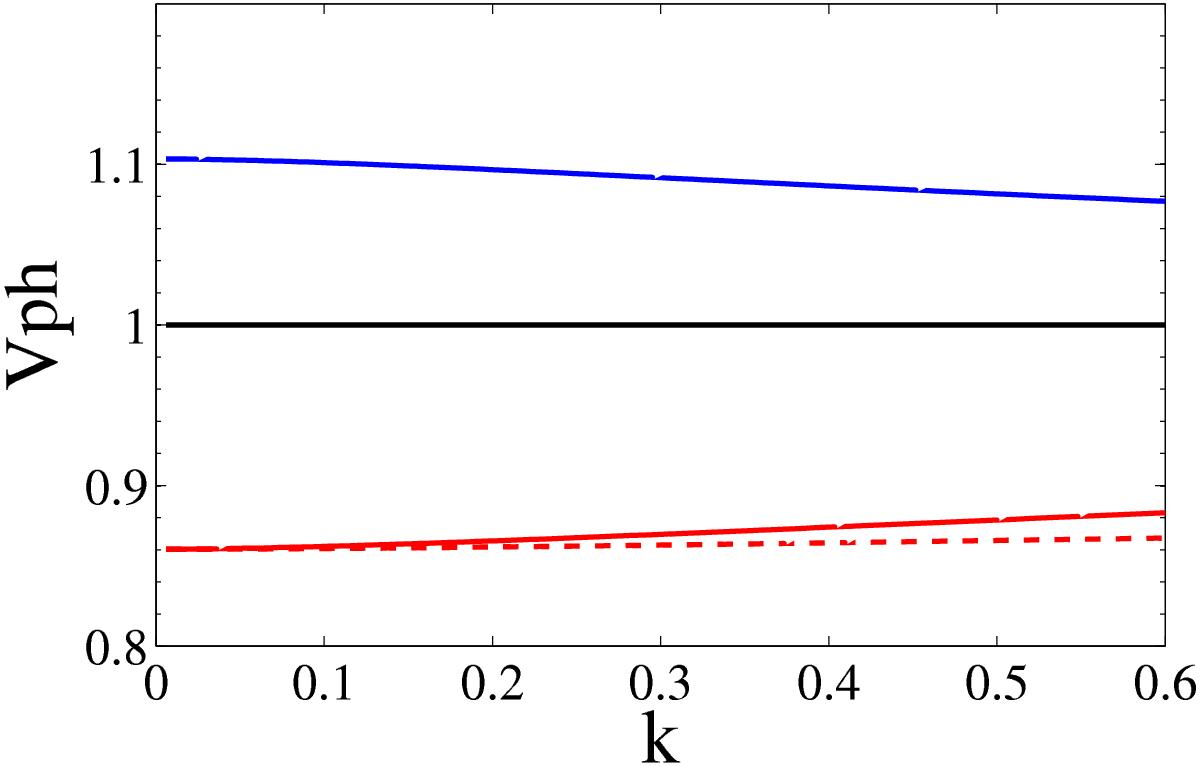

Fig. 3


Dispersion curves for the torsional wave. The black line is for the torsional wave when the equilibrium twist, , and rotation, , are both equal to 0.3. The red curves are for the torsional wave when the equilibrium rotation is equal to 0.3, but the equilibrium twist is equal to zero. The blue curve is for the torsional wave when the equilibrium Twist is equal to 0.3 but the equilibrium rotation is equal to zero. All three solid curves have been obtained numerically from Eq. (14). The red dashed curve is obtained from the explicit expression (Eq. (22)). The speeds are normalised by the internal Alfvén speed.
