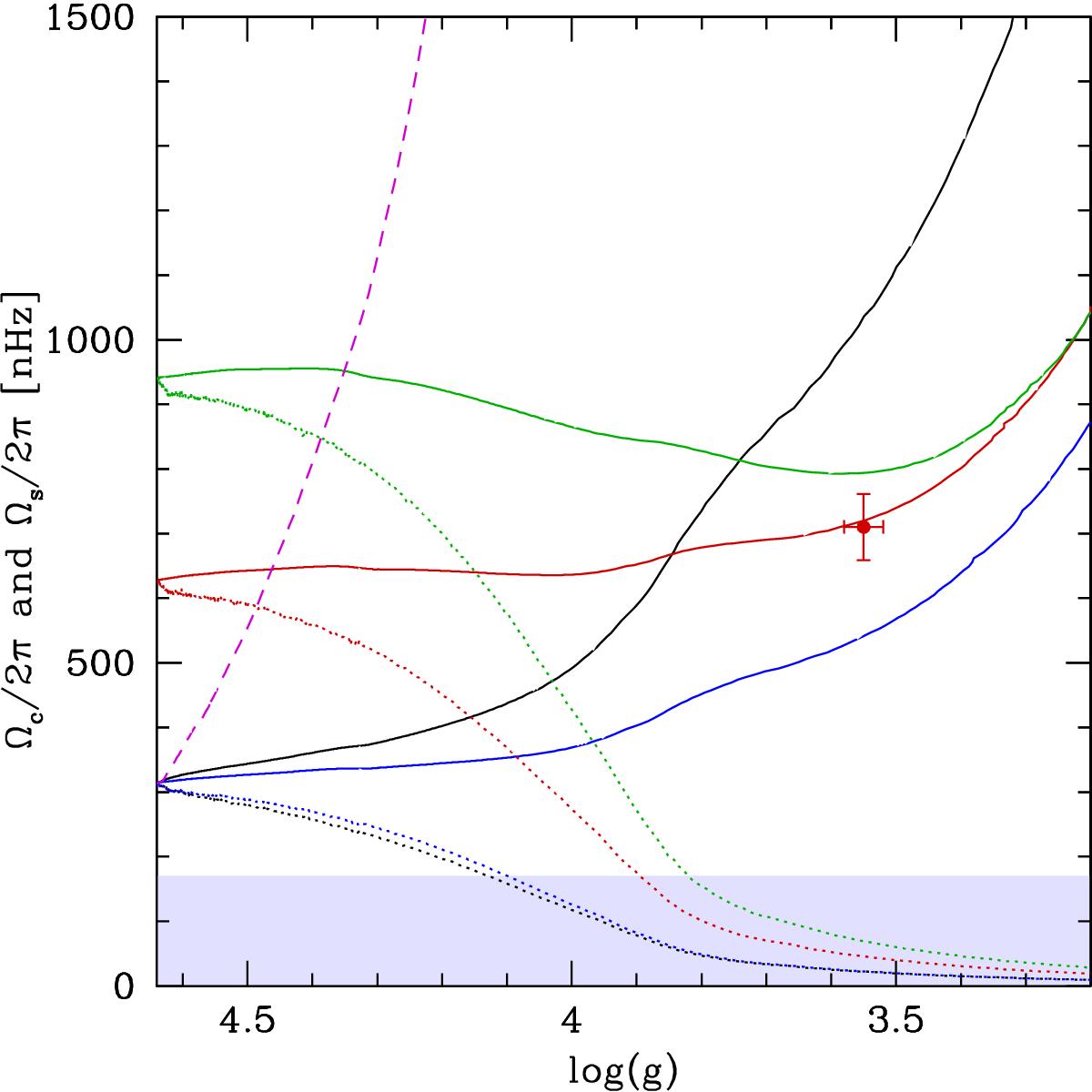

Fig. 5


Same as Fig. 2, but for models of KIC 7341231 computed with low initial rotation rates. The dashed line indicates the core rotation rate for a model computed with shellular rotation only (i.e., νadd = 0) and an initial velocity on the ZAMS of 1 km s-1. The black and blue lines indicate models computed with an initial velocity on the ZAMS of 1 km s-1 and with an additional viscosity of 1 × 103 and 2 × 103 cm2 s-1, respectively. The red line corresponds to a model with an initial velocity on the ZAMS of 2 km s-1 and an additional viscosity of 3 × 103 cm2 s-1. The green line indicates a model with an initial velocity on the ZAMS of 3 km s-1 and an additional viscosity of 4 × 103 cm2 s-1.
