Fig. 1

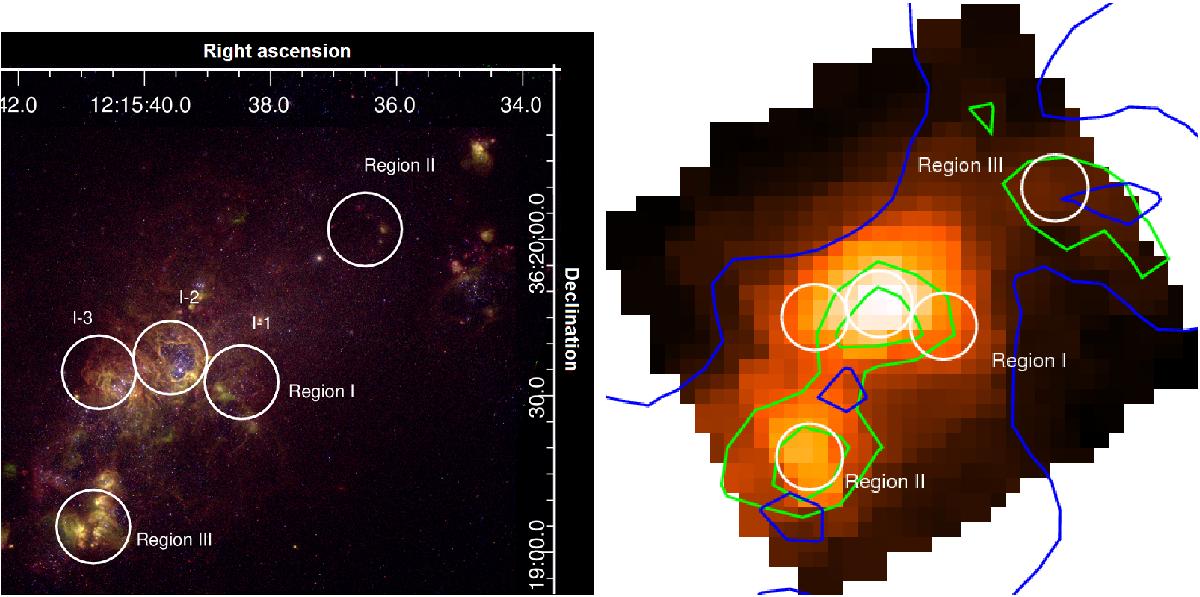

Left: three-color image of the central part of NGC 4214 and pointing positions for SOFIA/GREAT observations. HST WFC3 filters F336W (blue), F502 (green), and F657 (red) were used. Credit: NASA/Hubble. Right: integrated [C ii] intensity map observed with Herschel/PACS (Cormier et al. 2010). H i (Walter et al. 2008) contours overlayed in blue, CO(2 1) (Leroy et al. 2009) contours in green, and SOFIA/GREAT pointings as white circles with a diameter corresponding to 14.1′′ (~200 pc). For CO(2 1), the contour levels are at 1.2 K km s-1 and 2.4 K km s-1. For the extended H i the levels are at 0.23 Jy beam-1 km s-1 and 0.27 Jy beam-1 km s-1. The map covers a 1.6× 1.6 field of view (~1.3 kpc × 1.3 kpc).

This figure is made of several images, please see below:
